Installing a pond, sauna, or hot tub isn’t only about creating a place to relax — it also means navigating some of the most regulated areas of domestic electrical work. Each of these installations comes with its own environmental pressures: heat, humidity, proximity to water, and outdoor exposure. If not planned properly, they can pose a real risk of electrical failure or even personal injury. We’ve worked on dozens of these projects across Cornwall and know from experience that cutting corners, using the wrong cable type, or placing fittings too close to a water source can lead to expensive mistakes.
The good news is that with the right preparation and safe installation methods, all these features can be operated safely and reliably. Whether you’re wiring a pond pump, setting up a garden spa, or planning a timber sauna, you’ll need to account for UK electrical regulations — including zoning, RCD protection, and maintenance access.
For anyone planning a pond installation, our team has already created a detailed guide to garden pond wiring and pumps in Cornwall, which covers cable types, locations, and control systems.
Why Water Features and Wellness Areas Need Special Electrical Planning
Domestic electrical systems don’t always cope well with moisture, extreme heat, or variable outdoor conditions. That’s why installations near water — such as ponds, hot tubs, and saunas — are classed as “special locations” under the UK Wiring Regulations (BS 7671).
The risk factors include:
- High conductivity of water, especially chlorinated or salt water
- Possibility of condensation, steam, or direct water contact
- Increased risk of wear on outdoor cabling and fittings
- Exposure to extreme temperatures in saunas or heated spa tubs
These settings demand equipment with appropriate Ingress Protection (IP) ratings, usually IPX4 or higher, and enhanced protective measures such as RCDs and earth bonding. Bathrooms are already divided into Zones 0–2 based on water proximity, and similar thinking is applied outdoors when installing electrics near pools or tubs.
Ponds – Cabling, Circuits & Compliance
Garden ponds often appear straightforward, but from an electrical perspective, they involve permanent power supply running through damp environments — often below ground level.
Cable Choice and Protection
The cable running to a pond must be protected from mechanical damage. That typically means using steel-wire armoured (SWA) cable or suitably rated flexible cable enclosed in conduit. Junction boxes must be waterproof and rated for outdoor use.
RCD Protection and Isolated Circuits
All outdoor circuits should be protected by a 30mA RCD, preferably from a separate consumer unit with local isolation. This prevents nuisance tripping across the main board and keeps the system easier to manage.
Pump Control and Switching
We typically recommend installing a timer or photocell to control the pump. All switches and controls should be located well away from the pond itself and housed in weatherproof enclosures.
Maintenance Planning
Access to pump housings and cable routes should be considered before digging or landscaping. Moisture-proof terminations and scheduled testing will help avoid corrosion or faults underground.

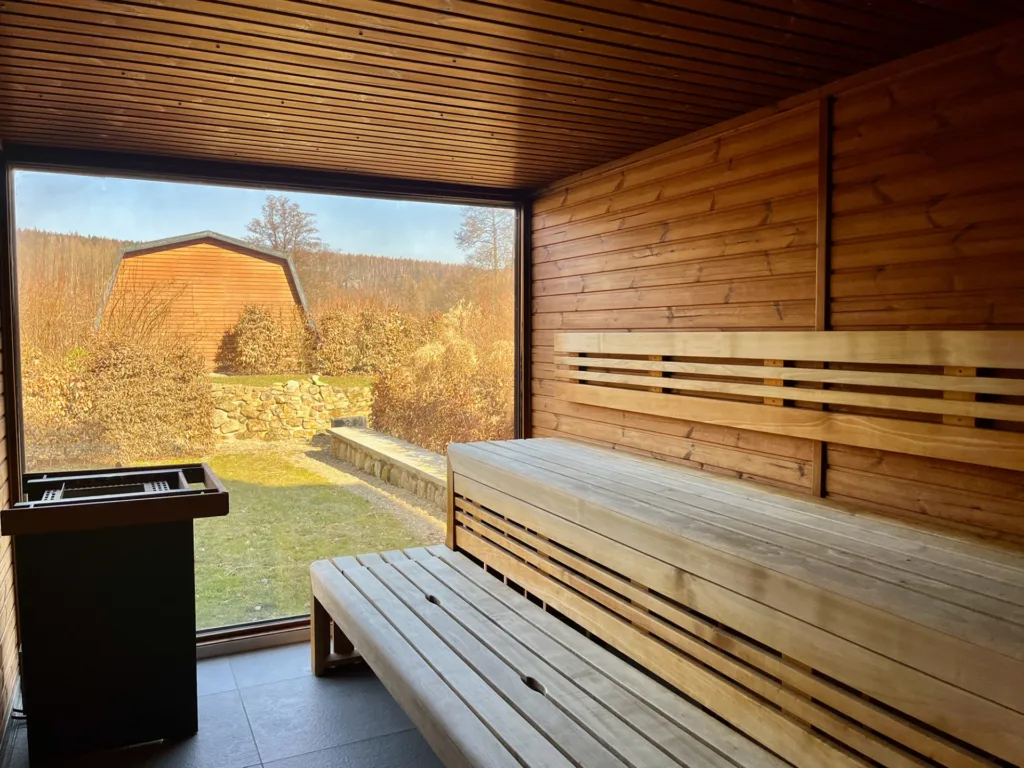

Saunas – Heat + Electricity = Caution
The high operating temperatures of saunas (up to 100°C in traditional models) create a challenging environment for any electrical fitting. Every connection and device must be rated for high-heat use or installed safely outside the hot room.
Heater Power Demand
Typical domestic sauna heaters draw between 2kW and 9kW, which usually requires a dedicated circuit and properly sized cable. Infrared panels are often lower in demand but still require careful load planning.
Circuit Design and Safety Devices
A dedicated circuit with its own RCBO is standard for most sauna installations. This isolates faults without affecting the rest of the property.
Fittings and Materials
Lights and switches should be designed specifically for sauna use, using heat-tolerant insulation and components. Internal light fittings must be enclosed, moisture-sealed, and rated for the temperature zone they’re in.
Access and Ventilation
Sauna installations should include safe working access for maintenance and be designed so that control gear can be reached without entering the heated zone. Mechanical ventilation also plays a role in ensuring safety and prolonging component life.
Hot Tubs – High Demand and Outdoor Hazards
Hot tubs combine several risk elements: water, weather, high current loads, and frequent usage. Electrical supply must be handled carefully to keep both users and systems safe.
Power Supply Requirements
Most hardwired hot tubs require a 32A supply on a dedicated circuit. This is usually supplied via 6mm² SWA cable, with the final connection often requiring a rotary isolator located at least 2m from the tub.
Safe Siting and Isolation
The isolator switch must be accessible and visible from the tub, but far enough away to prevent accidental contact. It also needs to be IP65-rated or higher.
Bonding and Earth Continuity
Equipotential bonding is required for all conductive parts within 2.5m of the tub, including metal steps, handrails, or structural supports. Earth leakage protection via an RCD is essential.
Routine Inspections
Outdoor installations, especially near the coast, face additional exposure to salt and UV. We recommend periodic inspection of glands, insulation, and enclosures as part of a seasonal maintenance plan. This is a service we routinely support as part of our outdoor electrics offering.
Safety Equipment and Ongoing Maintenance
Even a perfectly installed system won’t stay safe unless it’s maintained. Water ingress, corrosion, and seasonal wear can degrade electrical protection over time.
Residual Current Devices (RCDs)
These are non-negotiable for all installations near water. They must trip at 30mA within 40ms to meet regulatory standards. An RCBO (combined breaker and RCD) offers even more control.
Visual Checks and Functional Tests
We advise clients to perform monthly visual checks and test RCDs quarterly. For hot tubs and ponds, autumn and spring are ideal times for in-depth inspections.
What to Look Out For
- Discoloured or brittle insulation
- Water ingress inside junction boxes
- Corrosion around gland entries
- Loose covers or broken seals
FAQs
Do I need a qualified electrician to install a pond pump?
Yes — the wiring must comply with Part P of the Building Regulations. This includes safe cable routing, RCD protection, and testing.
Can I use an extension lead to power a hot tub temporarily?
No. Hot tubs draw significant current and must be hardwired. Using an extension lead is both unsafe and non-compliant.
What’s the minimum distance between a hot tub and an isolator?
At least 2 metres is recommended. The switch must be visible, accessible, and rated for outdoor use.
Concluding Thoughts
Adding a hot tub, pond, or sauna can be a brilliant upgrade to your home — but without the right electrical planning, it can also become a costly hazard. We’ve seen installations where cabling wasn’t protected, RCDs weren’t present, or fittings were mounted too close to the water’s edge. Every project of this kind involves a mix of regulation, risk management, and practical design.
If you’re considering a new installation or want to make sure your existing system is safe and up to code, our team is happy to assist. Whether it’s high-load sauna heaters, tricky pond cabling, or outdoor spa circuits, we’ll ensure everything’s designed for safety and durability.
For tailored advice or to book an installation, visit our contact page.
