Consumer Unit Replacement and Bathroom Electrical Installation in Truro

The property in Truro required significant electrical work to bring the installation in line with current standards whilst addressing some specific needs around bathroom lighting and heating. What started as a consumer unit replacement developed into a wider project that touched on several areas of the home, each requiring careful planning and execution.

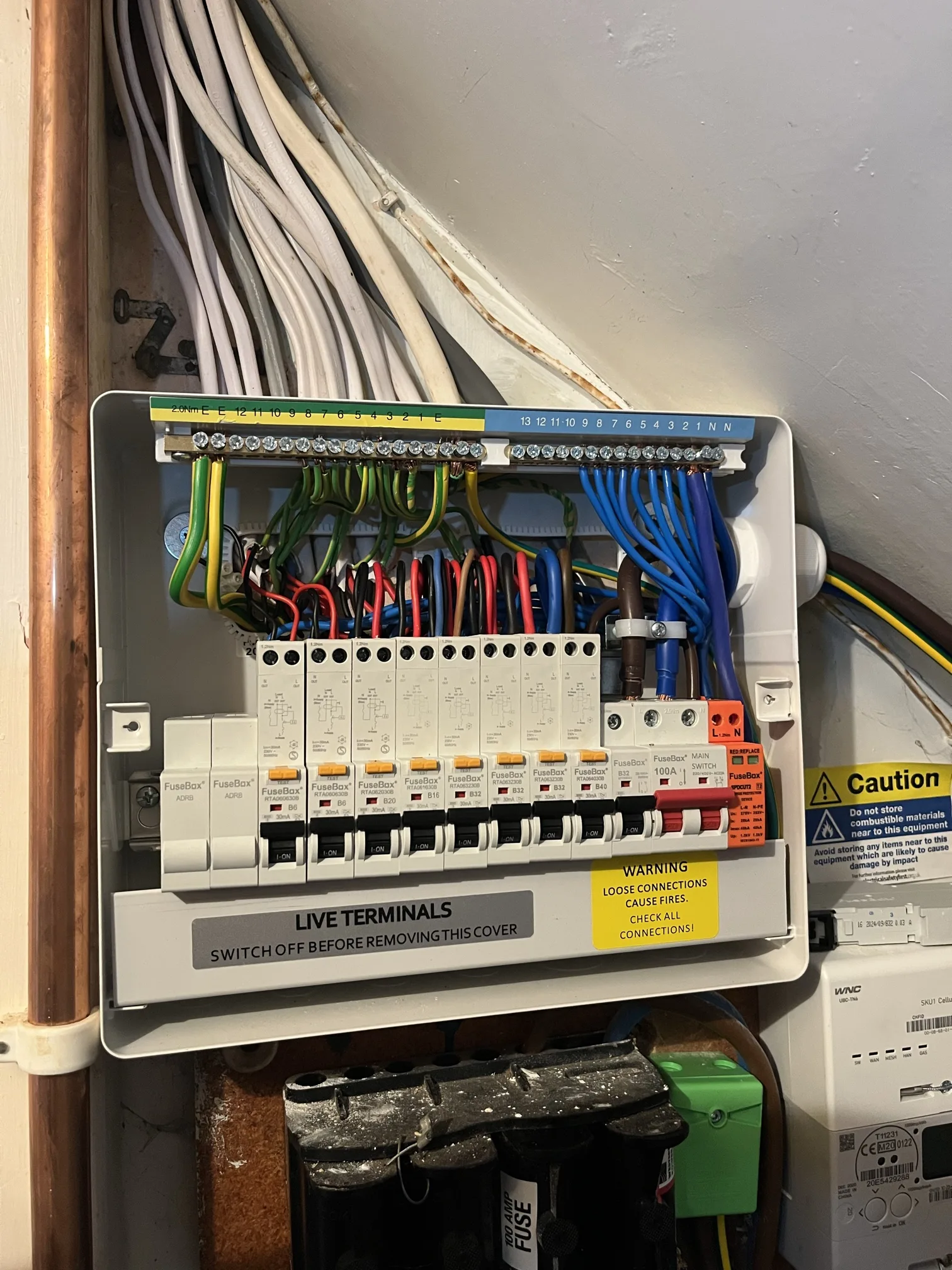

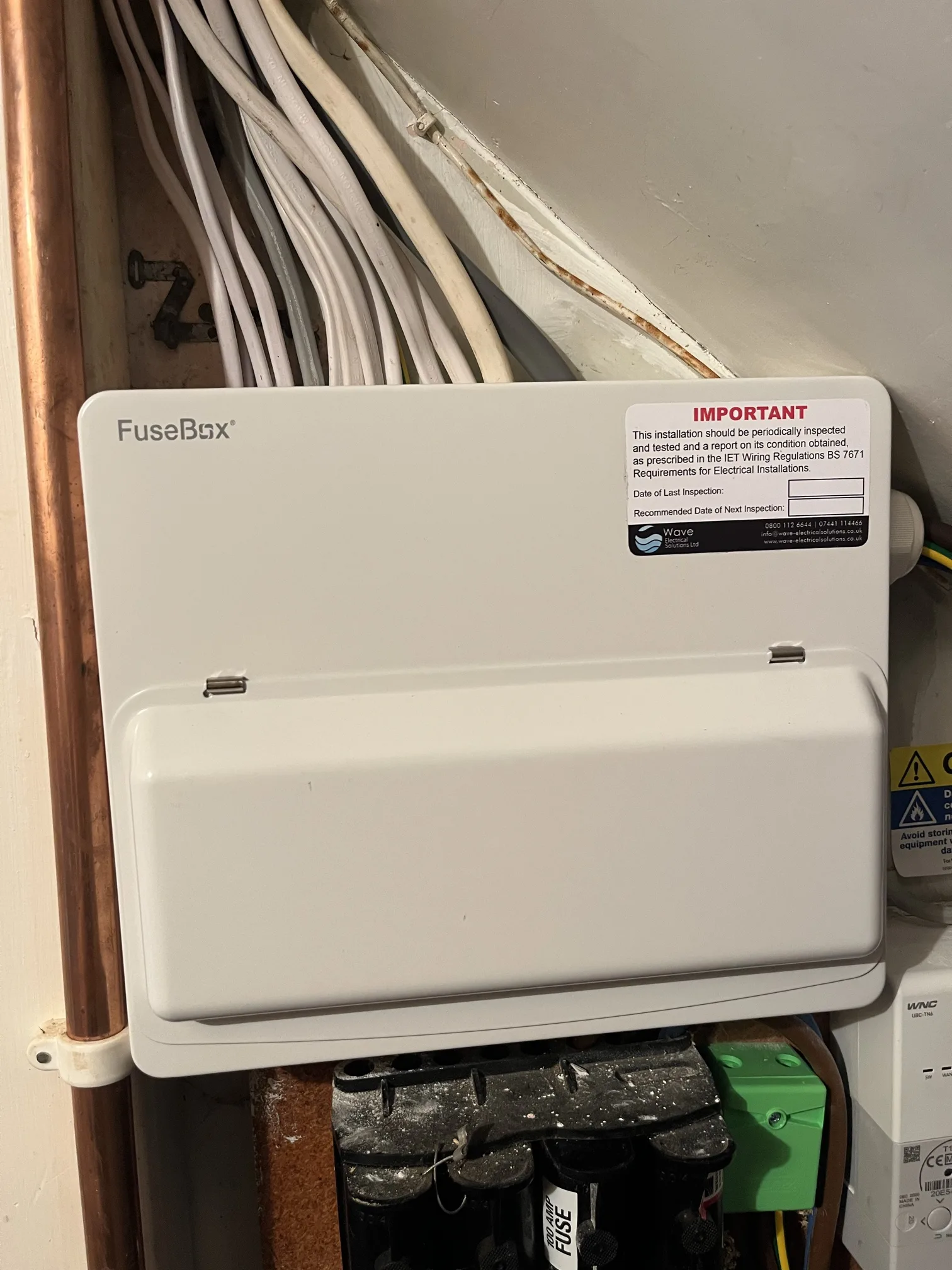

The main focus centred on replacing the existing consumer unit with a modern 11-way RCBO board fitted with integrated surge protection. This wasn’t simply a like-for-like swap but rather a proper upgrade that would protect the household’s electronics from voltage spikes and power surges coming from the grid. These events happen more frequently than most people realise, and without adequate protection, expensive appliances and sensitive equipment can suffer damage. The new consumer unit uses individual RCBOs for each circuit, which means that if a fault occurs on one circuit, only that specific circuit trips rather than taking out half the house. It’s a more convenient arrangement for the homeowner and makes fault-finding considerably easier should any issues arise in future.

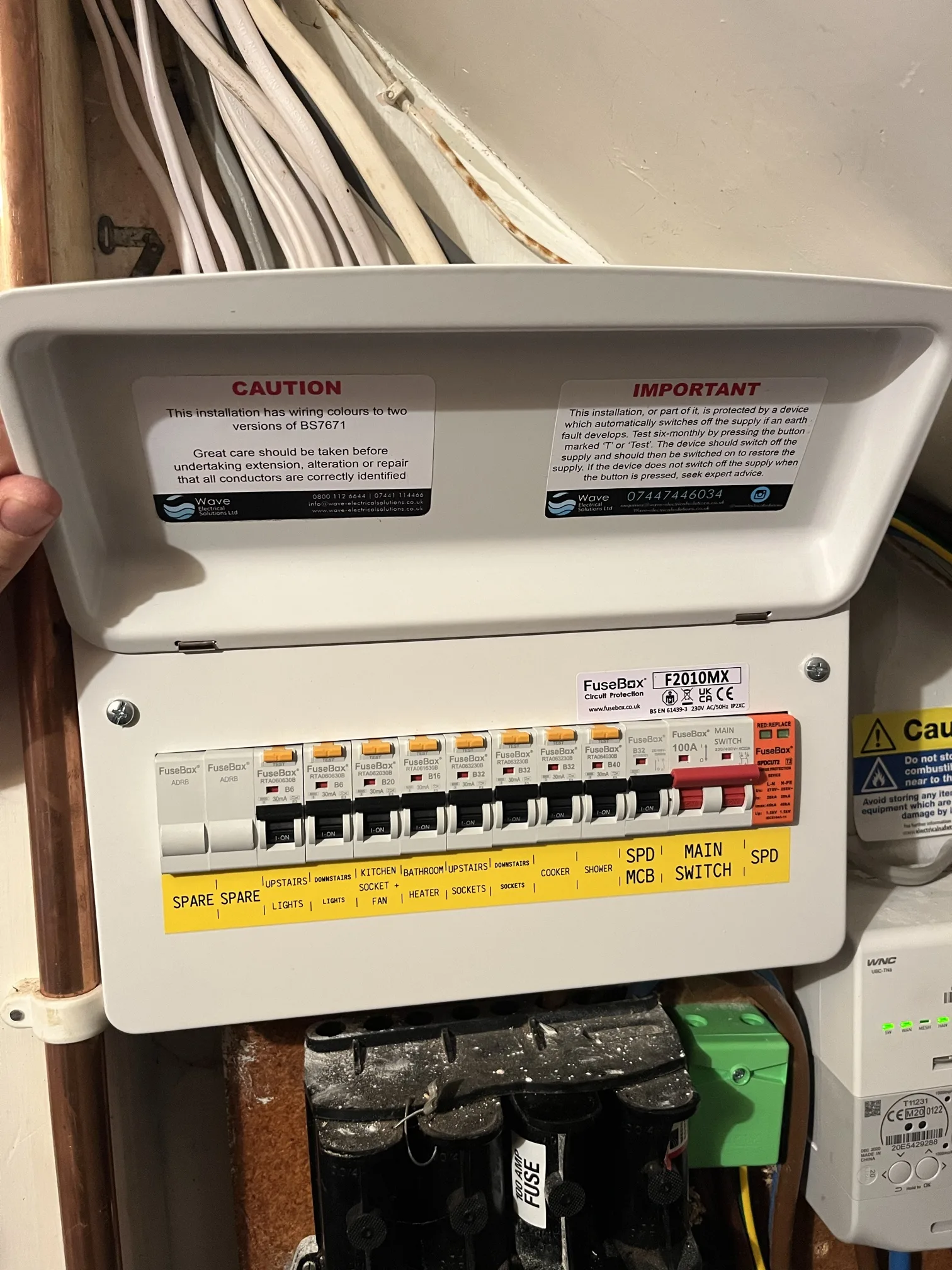

Before fitting the new board, the incoming meter tails needed upgrading to 25mm double insulated cabling. The existing tails weren’t substantial enough to meet current requirements, particularly given the total load the property might draw. Getting this right at the outset prevents potential issues down the line and gives the installation proper headroom for future additions or changes. The new consumer unit was positioned and terminated carefully, with all circuits clearly labelled to make identification straightforward for anyone who might need to work on the system later.

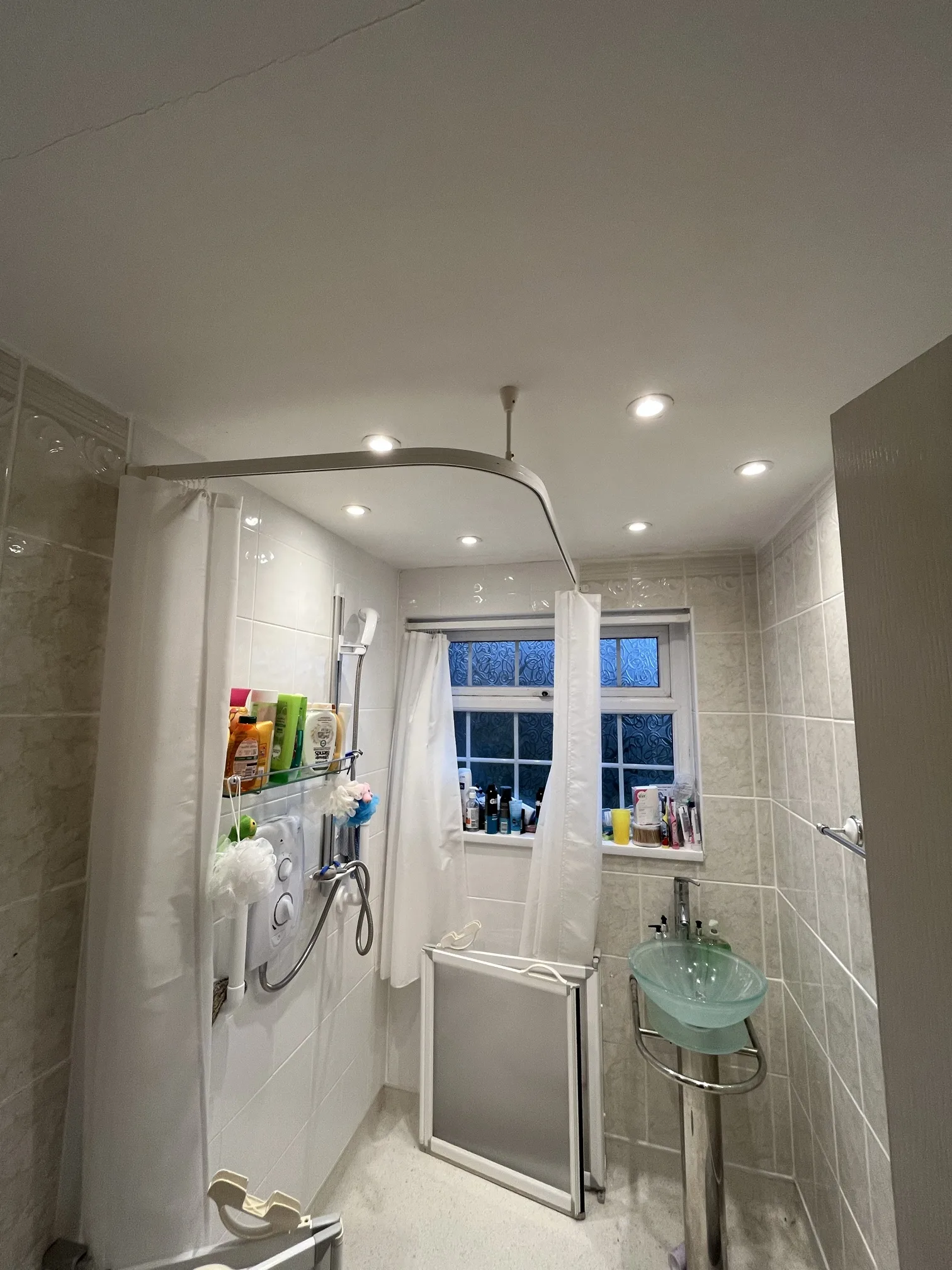

Once the consumer unit was in place and all circuits had been tested, attention turned to the bathroom. The existing downlights had reached the end of their useful life and needed replacing with something more suitable for the humid environment. Six new LED downlights went in, all rated to IP65 standard which makes them properly resistant to moisture and steam. These units provide warm white light that creates a comfortable atmosphere whilst being far more energy-efficient than the old fittings. Each downlight was connected to the existing lighting circuit, with care taken to avoid disturbing the ceiling finish more than necessary. The bathroom already had decent access from above through the loft space, which made the installation considerably smoother than it might have been otherwise.

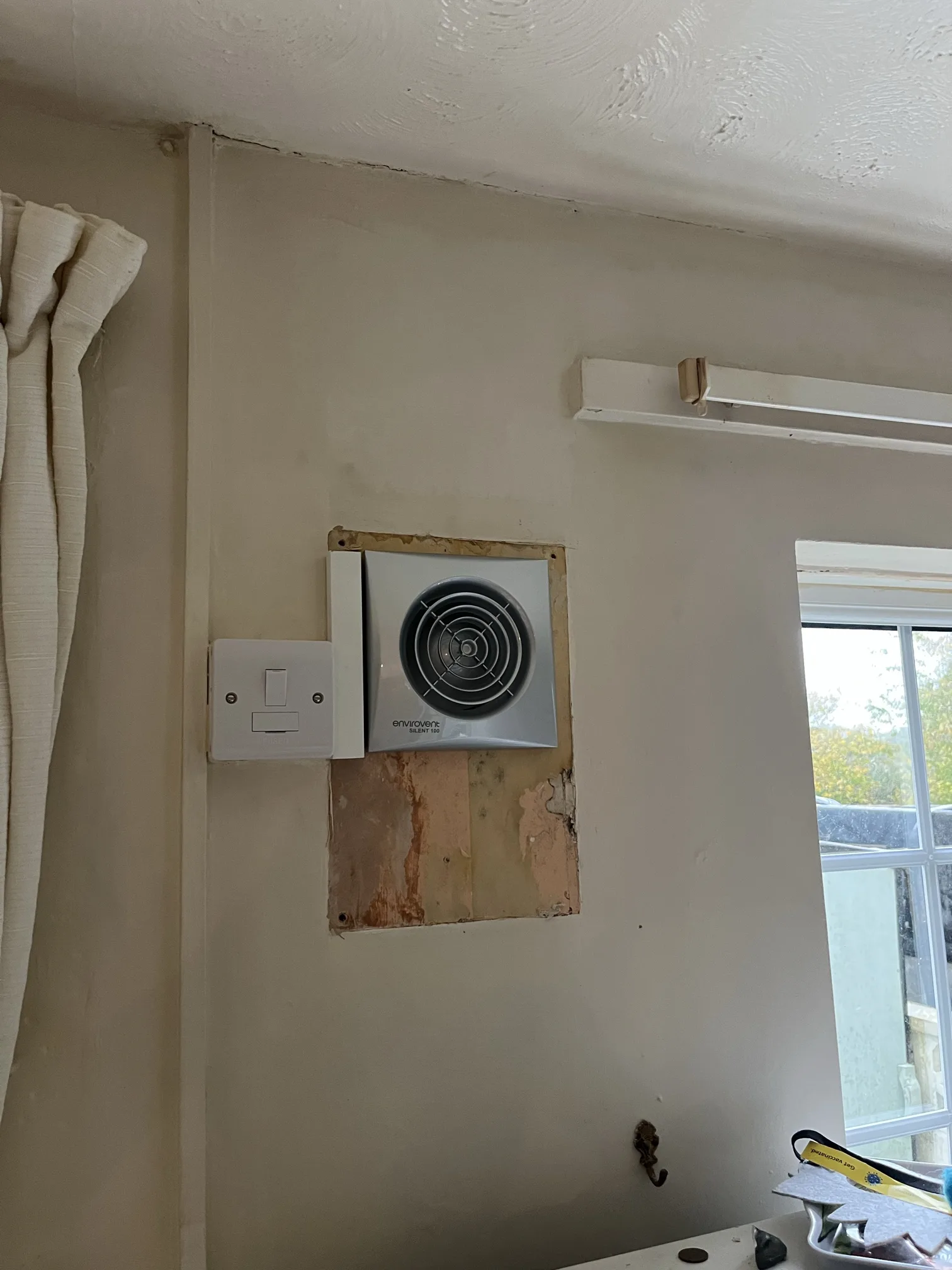

The kitchen presented its own requirements. The old extractor fan had been struggling for some time and wasn’t shifting moisture as effectively as it should. A new wall-mounted unit went in, properly sized at four inches to handle the kitchen’s ventilation needs without being unnecessarily noisy or obtrusive. This type of fan mounts directly to the external wall and vents straight outside, making it more efficient than duct-based systems that lose airflow over distance. The fan connects to the existing power supply and operates through the wall switch that was already in place, keeping things simple for daily use. Getting the positioning right mattered here – too high and it misses the rising steam, too low and it gets in the way. The sweet spot sits just above head height where it can catch moisture and cooking odours without being intrusive.

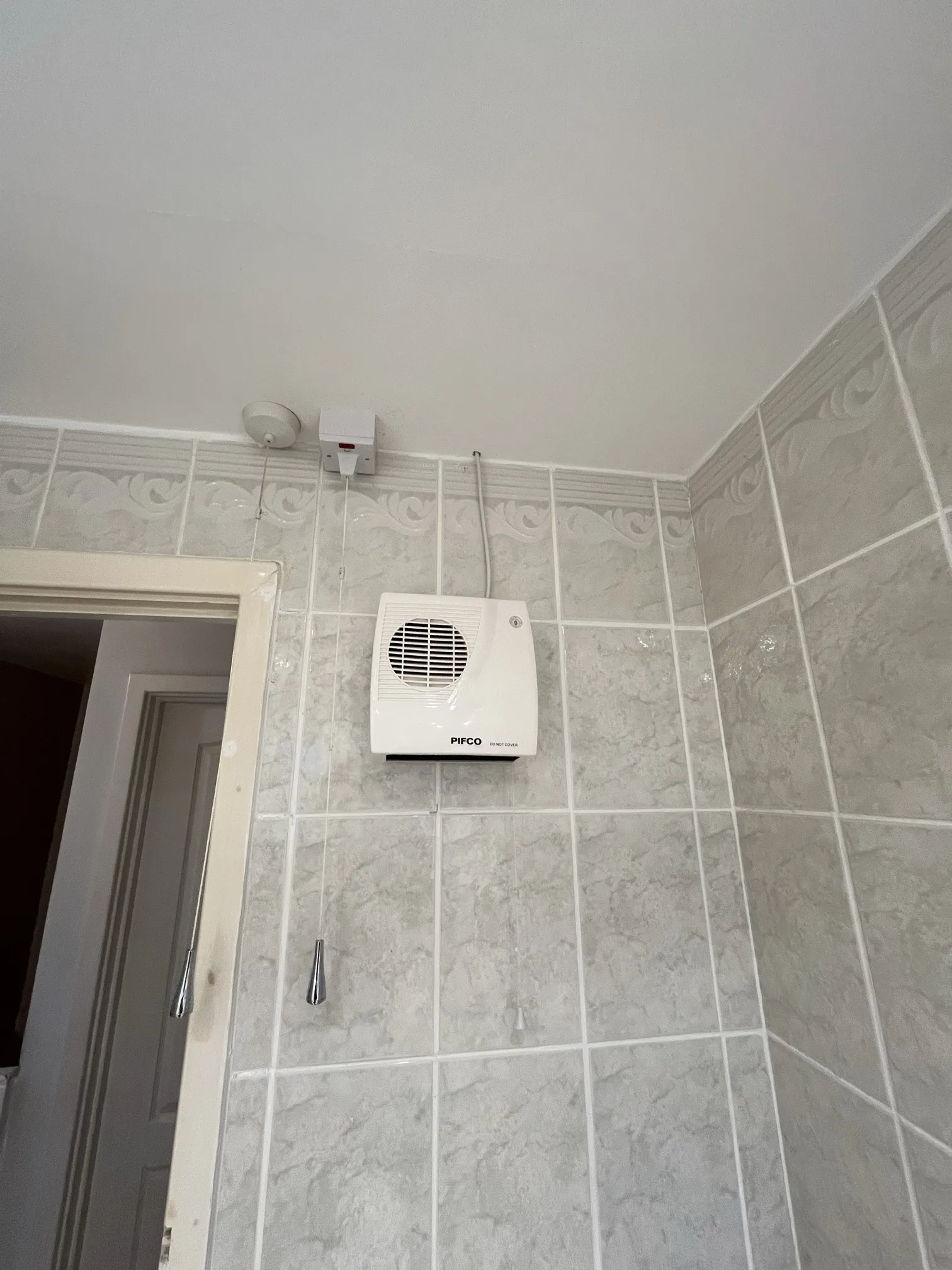

Perhaps the most involved part of the job centred on providing power for a bathroom wall heater that had been installed but left without an electrical supply. The heater itself was already mounted, but it needed a dedicated circuit and local isolation to meet safety requirements. Power was drawn from a suitable circuit located in the loft space, which required careful routing to bring cables down to the bathroom whilst maintaining fire integrity where they passed through structural elements. A ceiling-mounted pull cord switch rated at 16 amps was fitted adjacent to the heater, giving the homeowner a straightforward way to isolate the unit when needed. This type of switch suits bathroom environments perfectly as it’s designed to operate in damp conditions and provides visible isolation that’s within easy reach.

Throughout the project, compliance with the 18th Edition wiring regulations remained paramount. Every altered circuit underwent thorough testing to verify that everything operated safely and within specified parameters. Insulation resistance, continuity, polarity and earth fault loop impedance all needed checking and recording. These tests aren’t just box-ticking exercises – they provide genuine assurance that the installation will perform reliably and safely for years to come. The results were documented in a full Electrical Installation Certificate, which also facilitated the Building Control notification required for this type of work.

Working in an occupied home always requires consideration for the people living there. Power had to be isolated at various points during the consumer unit replacement, which meant coordinating timing to minimise disruption. Access through the loft for both the downlight installation and the wall heater supply meant taking care to protect the ceiling below and keeping the workspace tidy. The homeowner could see progress as each element came together – the new consumer unit on the wall with its neat labelling, the warm glow from the bathroom downlights, the quiet efficiency of the kitchen fan, and finally the functional wall heater with its dedicated switch.

The surge protection built into the new consumer unit deserves particular mention because it’s often misunderstood. Many people associate power surges solely with lightning strikes, but they actually occur regularly from various sources including the switching of heavy loads on the local network and even within the home itself. Modern homes contain increasingly sophisticated electronics – smart thermostats, entertainment systems, computers, kitchen appliances with digital controls. All of these benefit from surge protection that responds in microseconds to divert excess voltage safely to earth. It’s an investment in protecting equipment that collectively costs far more than the surge protection device itself.

The bathroom lighting transformation made an immediate visual difference. LED technology has advanced considerably in recent years, and the warm white output from these particular units creates comfortable illumination that works well for both practical tasks and relaxation. The IP65 rating means they’re properly sealed against moisture ingress, which extends their lifespan significantly compared to standard downlights that might be used in drier environments. Each fitting includes the bezel finished in white to complement the bathroom’s existing décor without drawing unnecessary attention.

Testing and certification formed the final stage of the project. Each circuit was methodically checked to confirm safe operation, with readings recorded for future reference. The Electrical Installation Certificate provides a complete record of what was installed, tested and verified. This documentation becomes part of the property’s history and proves invaluable during house sales or insurance claims. It also gives the Building Control authority the information needed to sign off on the electrical work and update their records accordingly.

The completed installation brings together multiple improvements that work in harmony. The modern consumer unit provides reliable protection and convenient circuit separation, the bathroom enjoys efficient LED lighting and functional heating with proper controls, whilst the kitchen benefits from effective ventilation. Each element was installed to current standards and tested thoroughly, giving the homeowner confidence in their electrical system’s safety and reliability.
