Consumer Unit Replacement and EICR Remedial Works in Bodmin

Electrical installations don’t last forever. Over time, components age, regulations change, and what was once acceptable no longer meets the standards required for safe operation. This property in Bodmin presented exactly that scenario when the homeowner contacted us to carry out an electrical safety inspection.

The first step involved conducting a thorough electrical inspection across all circuits in the property. This process, which produces what’s known as an Electrical Installation Condition Report, examines every aspect of the installed electrical system. We’re looking at circuit integrity, protective device operation, earthing arrangements, and whether everything complies with current safety standards. It’s detailed work that requires methodical testing of each circuit, recording measurements, and identifying any departures from the regulations that might pose a risk.

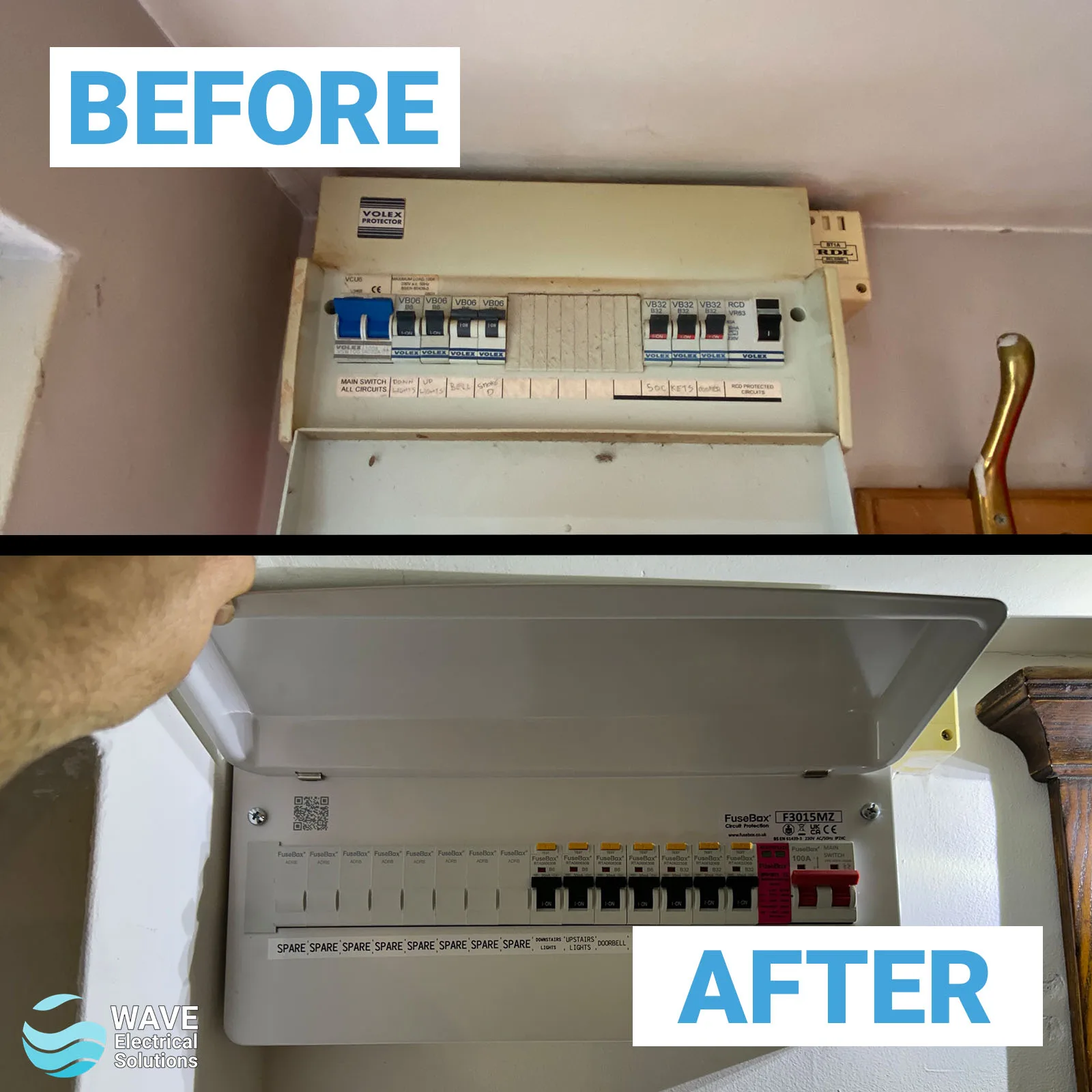

During this inspection, several issues came to light. The existing consumer unit had been in place for many years, and whilst it had served the property well, it was now showing its age. The old Volex unit lacked the safety features that modern installations incorporate as standard, and some of the circuits required attention to bring them back within acceptable parameters. Rather than attempting patchwork repairs on an ageing system, the sensible approach was a complete consumer unit replacement combined with addressing the remedial works identified in the inspection.

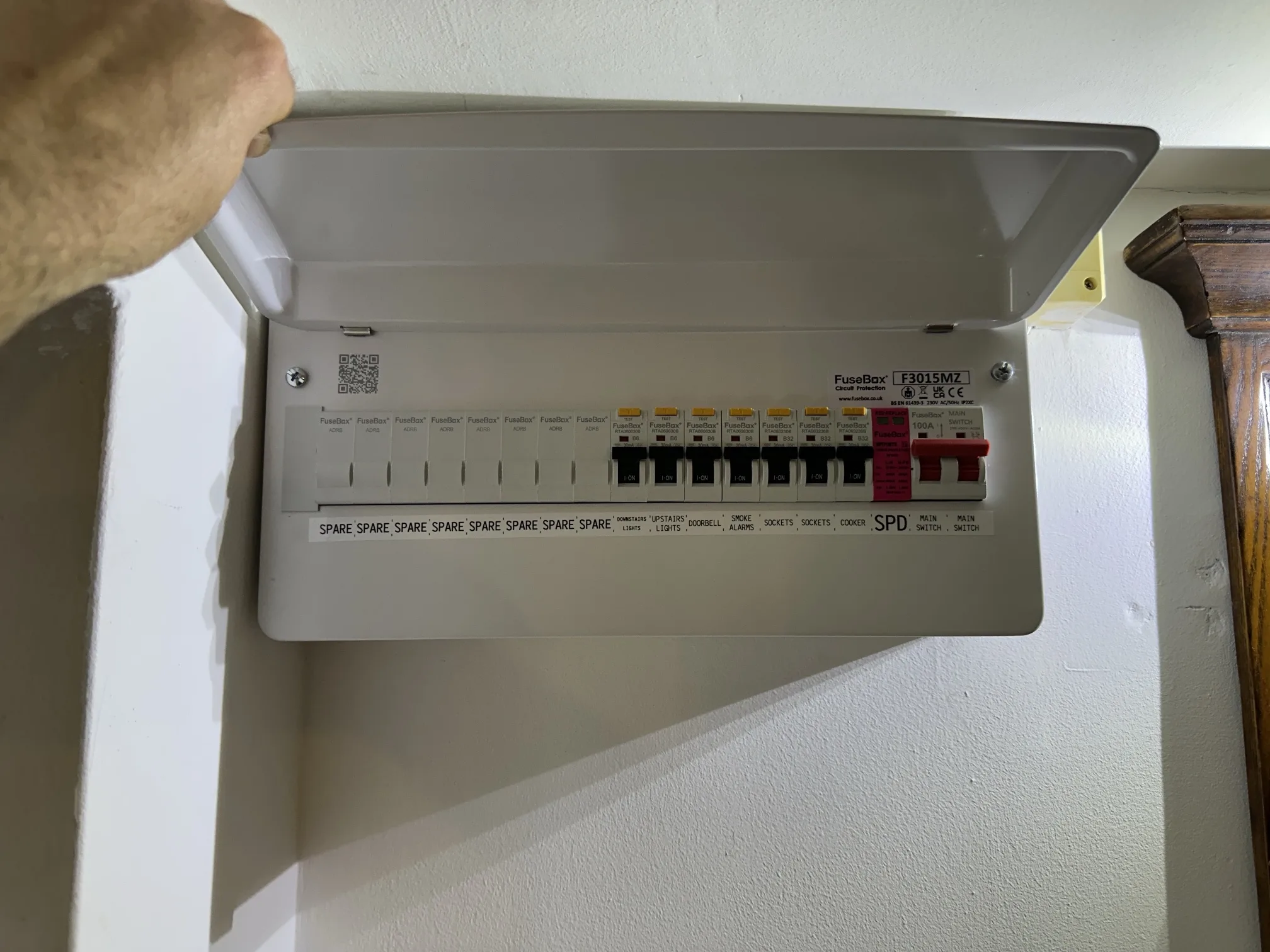

Modern consumer units offer significantly better protection than their predecessors. The 15-way RCBO consumer unit we installed provides individual protection for each circuit, meaning that a fault on one circuit won’t affect the rest of the installation. Each RCBO – Residual Current Circuit Breaker with Overload protection – combines two functions. It will disconnect the circuit if it detects an earth fault that could present a shock risk, and it will also trip if the circuit becomes overloaded. This dual protection wasn’t available in older fuse boxes, where a simple fuse would only protect against overload, not earth faults.

One feature that’s now considered standard practice in new installations is surge protection. The integrated Surge Protection Device fitted within this consumer unit guards against voltage spikes that can come from the electricity grid. These surges might be caused by lightning strikes, switching operations at substations, or various other events on the network. Without protection, such surges can damage or destroy electronic equipment – everything from computers and televisions to kitchen appliances and heating controls. Given how much electronic equipment modern homes contain, surge protection has become increasingly important.

The incoming meter tails also needed upgrading as part of this work. These are the thick cables that run from the electricity meter to the consumer unit, carrying the full electrical load of the property. We replaced the existing tails with 25mm double-insulated cabling, providing ample capacity for the property’s electrical demands whilst meeting current installation standards. Proper sizing of these cables matters because undersized tails can overheat under load, creating a fire risk. The double insulation provides an extra layer of safety, particularly important given their location and the currents they carry.

Fire safety was another consideration in selecting the replacement unit. The consumer unit installed incorporates fire-rated construction, which helps contain any fault that might occur within the unit itself. Should something go wrong inside the consumer unit – though with proper installation this is unlikely – the fire-rated enclosure is designed to prevent or delay the spread of fire, giving occupants more time to detect the problem and respond.

Installing a new consumer unit isn’t simply a case of swapping the old unit for a new one. Every circuit needs to be carefully identified, disconnected from the old unit, and reconnected to the new one in the correct way. The incoming supply must be isolated – we always coordinate with the distribution network operator for this – and all the circuit cables need to be properly terminated. Each connection must be tight and secure, because loose connections create resistance, and resistance creates heat.

After the physical installation comes the testing phase. We tested every circuit that we’d altered or reconnected, checking insulation resistance, continuity, earth fault loop impedance, and RCD operation. These tests verify that everything is working as it should and that all the protective devices will operate correctly if a fault occurs. The results of this testing form part of the Electrical Installation Certificate that we produced for the work.

The remedial works identified during the initial inspection were addressed alongside the consumer unit replacement. This approach makes sense because with the supply isolated and access to all circuits at the consumer unit, it’s an efficient time to carry out any necessary remedial work. The specific nature of these remedials isn’t something we’ll detail here, but they covered the items flagged during the inspection that required attention.

Building Control notification was submitted for this work, as required for consumer unit replacements. This isn’t about seeking permission – the notification informs the local authority that the work has been carried out and that it complies with Building Regulations. We handle this process as part of our service, submitting the necessary documentation that includes the test results and installation certificate.

Properties in Bodmin, like anywhere else, benefit from electrical installations that meet modern safety standards. The 18th Edition of the wiring regulations, which this installation now complies with, incorporates the latest understanding of electrical safety. These regulations evolve based on evidence and experience, with each edition addressing issues that previous editions may not have fully covered. Whilst older installations were built to the standards of their time, bringing them up to current standards provides better protection for occupants and property.

The transformation from the old installation to the new one represents more than just a cosmetic upgrade. The homeowner now has a system that provides better protection against electrical faults, guards their electronic equipment against surges, and meets all current safety requirements. Should they need to extend the installation in future, there’s capacity within the consumer unit to add additional circuits without needing another upgrade.

Regular electrical inspections help identify issues before they become serious problems. The inspection that led to this work caught the ageing consumer unit and associated issues whilst they could be addressed in a planned, controlled manner rather than waiting for a failure. This proactive approach costs less and causes less disruption than emergency repairs following a fault.

Electrical safety isn’t something to compromise on. Systems that were installed decades ago, even if they were perfectly acceptable when first fitted, may not provide adequate protection by today’s standards. Technology has improved, our understanding of electrical hazards has developed, and the way we use electricity has changed considerably. Modern homes place demands on electrical systems that would have been unimaginable when many older installations were first put in.

This installation in Bodmin now provides the level of protection that current regulations require and that homeowners should expect. The work addressed both the immediate issues identified during testing and the underlying need for a modern, compliant consumer unit. It’s work that will serve the property well for many years to come, providing safe, reliable electricity distribution throughout the home.
