A Helston property required a number of electrical improvements across the home and garage - from replacing a faulty immersion heater timeclock and upgrading lighting circuits to installing new LED batten lights, sorting out disconnected sockets, and swapping out a failed socket outlet in the living room.
Some jobs come with a fairly lengthy list of things to sort, and this one at a property in Helston was a good example of that. Nothing was particularly complicated in isolation, but together it added up to a solid day’s work covering several different areas of the property – inside the house, out at the front, and across into the garage.

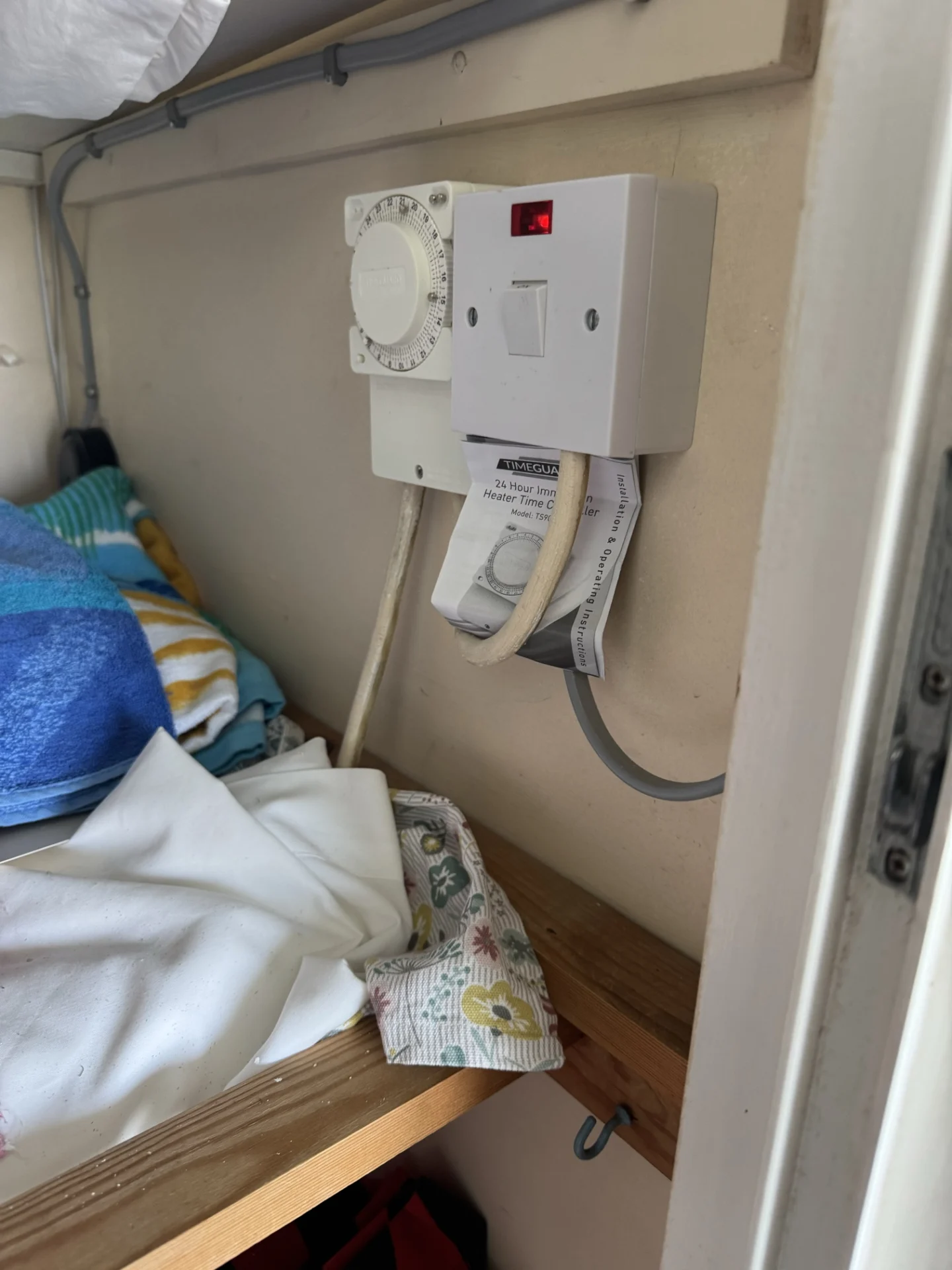

Immersion Heater Timeclock Replacement
The immersion heater timeclock had given up. The existing mechanical unit had become faulty and was no longer providing reliable control over the hot water heating, which is the kind of fault that creeps up on you – water either not heating when you need it, or running all day when you don’t. The existing unit was removed and replaced with a new 24-hour mechanical timeclock, restoring proper scheduled control to the immersion heater circuit. It’s a straightforward swap, but it makes a real difference to day-to-day hot water management.
Exterior Lighting Circuit – Separation and Switch Upgrade
The exterior light fitting adjacent to the main entrance had been wired in with the internal porch lighting, meaning both were controlled from the same switch. The client wanted to be able to operate them independently, which meant separating the circuit. A dedicated cable run was needed to achieve this, with new wiring brought back from the light’s location to the internal switch position.
To accommodate the additional switching requirement, the existing 3-gang light switch was removed and replaced with a 4-gang switch. All new surface cabling was contained within 25mm PVC trunking to keep the installation neat where it couldn’t be concealed within the wall. It’s worth noting that access to the permanent feed for the front exterior wall lights wasn’t possible on this visit, so the client was happy to proceed with the light connected as-is for now.
Exterior Wall Lights
The two front exterior wall light fittings were due to be replaced with client-supplied units featuring integrated PIR sensors, though as mentioned above, access to the permanent supply for these wasn’t achievable during this visit. The job was adapted on-site to reflect what was and wasn’t possible, and the client was kept informed throughout.

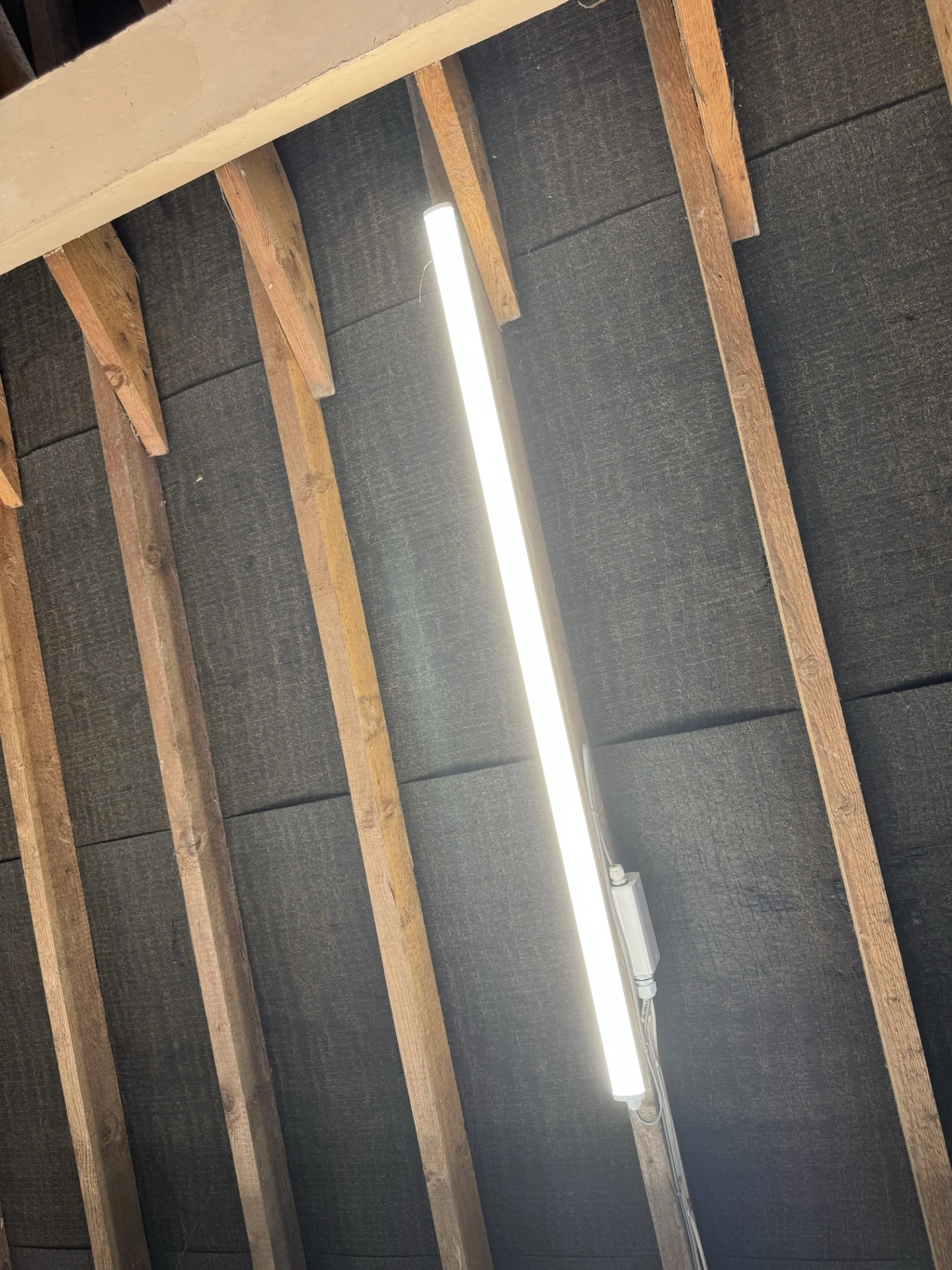

Garage Lighting
Two client-supplied LED batten lights were installed in the garage, positioned on either side of the space to give good, even coverage. Previously there’d been no usable lighting in there, so this was a worthwhile addition.

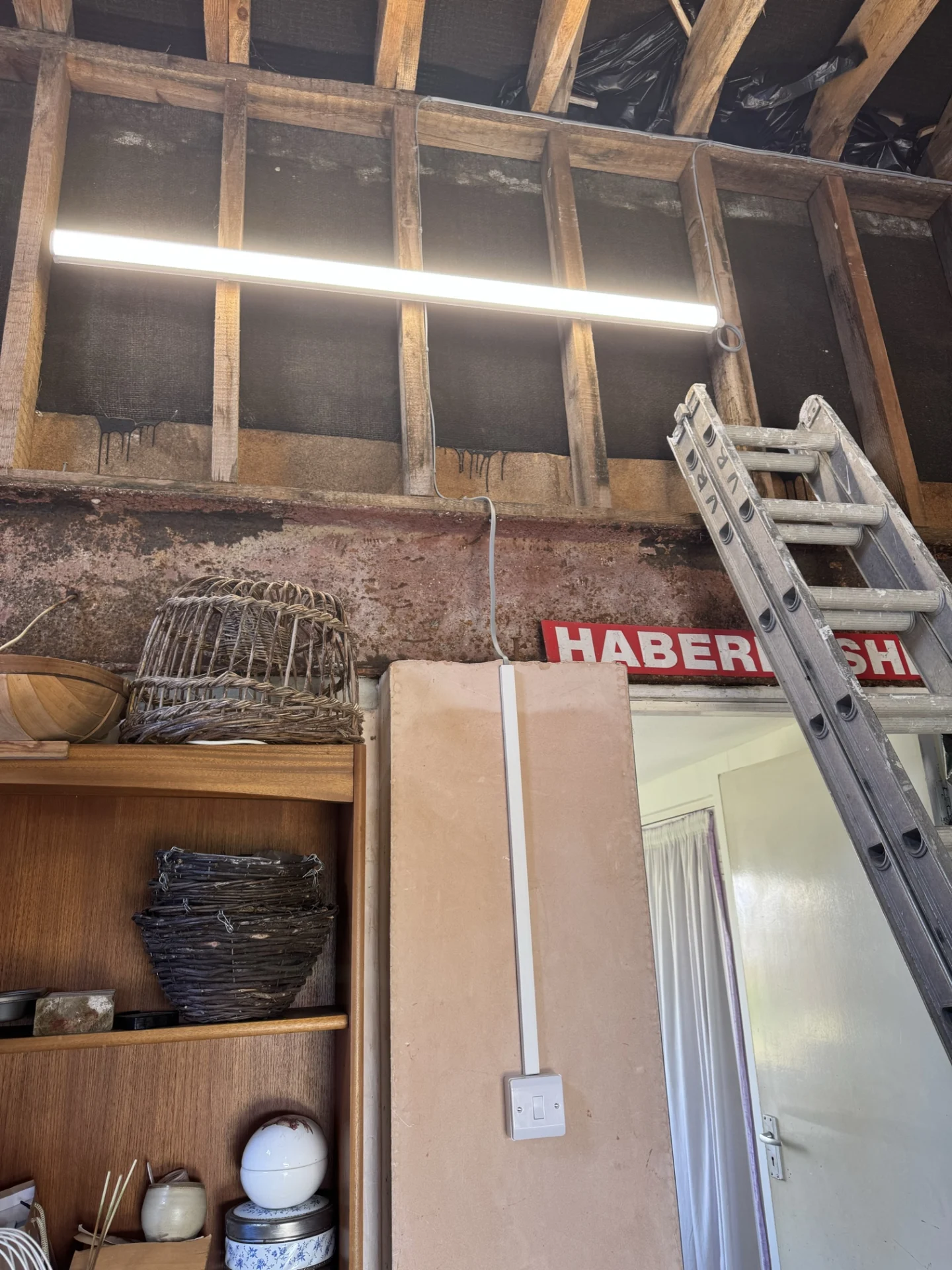

The circuit was wired to create a two-way switching arrangement, with a new switch installed adjacent to the internal doorway connecting the garage to the main property. This means the garage lights can be controlled from both entry points – handy when you’re carrying something in or out and don’t want to have to walk back to hit a switch. The cable between the new switch and the existing switch position was run using 3-core cable to achieve the two-way function.
Garage Socket Outlet
There was a previously disconnected socket outlet in the garage that had been left out of use. The old outlet was removed and a new surface-mounted 2-gang socket was installed near the exterior door, fed from the existing socket circuit connection point in the area. Cabling was either clipped to the timber joists overhead or run within 25mm trunking depending on the routing. Having a working double socket in the garage makes the space genuinely more usable, particularly if it’s being used as a workshop or storage area.

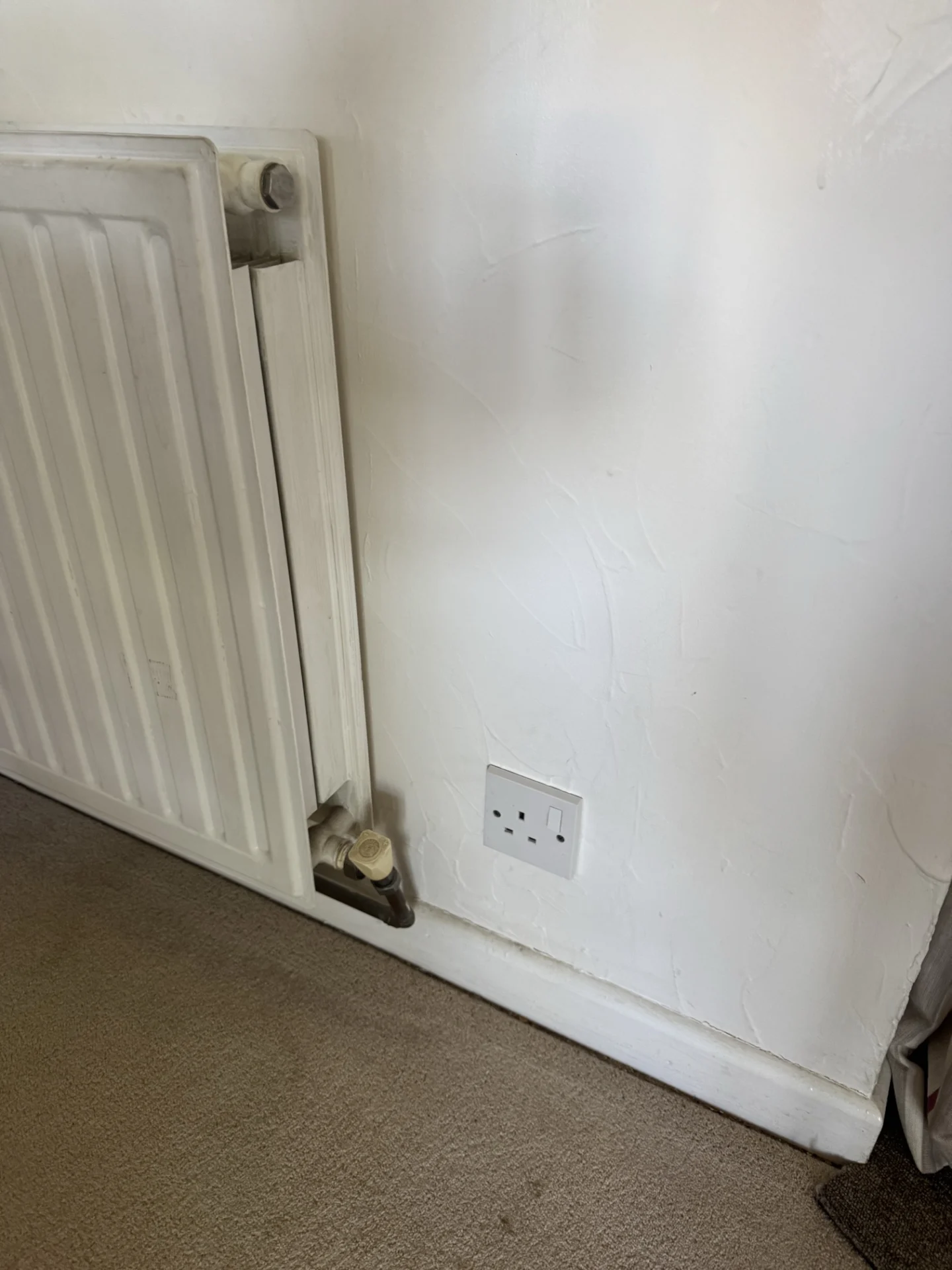

Living Room Socket Replacement
A single-gang socket outlet in the living room had become faulty and needed replacing. The existing wiring was in good order, so it was a case of swapping the outlet itself for a new unit and getting it back into service.

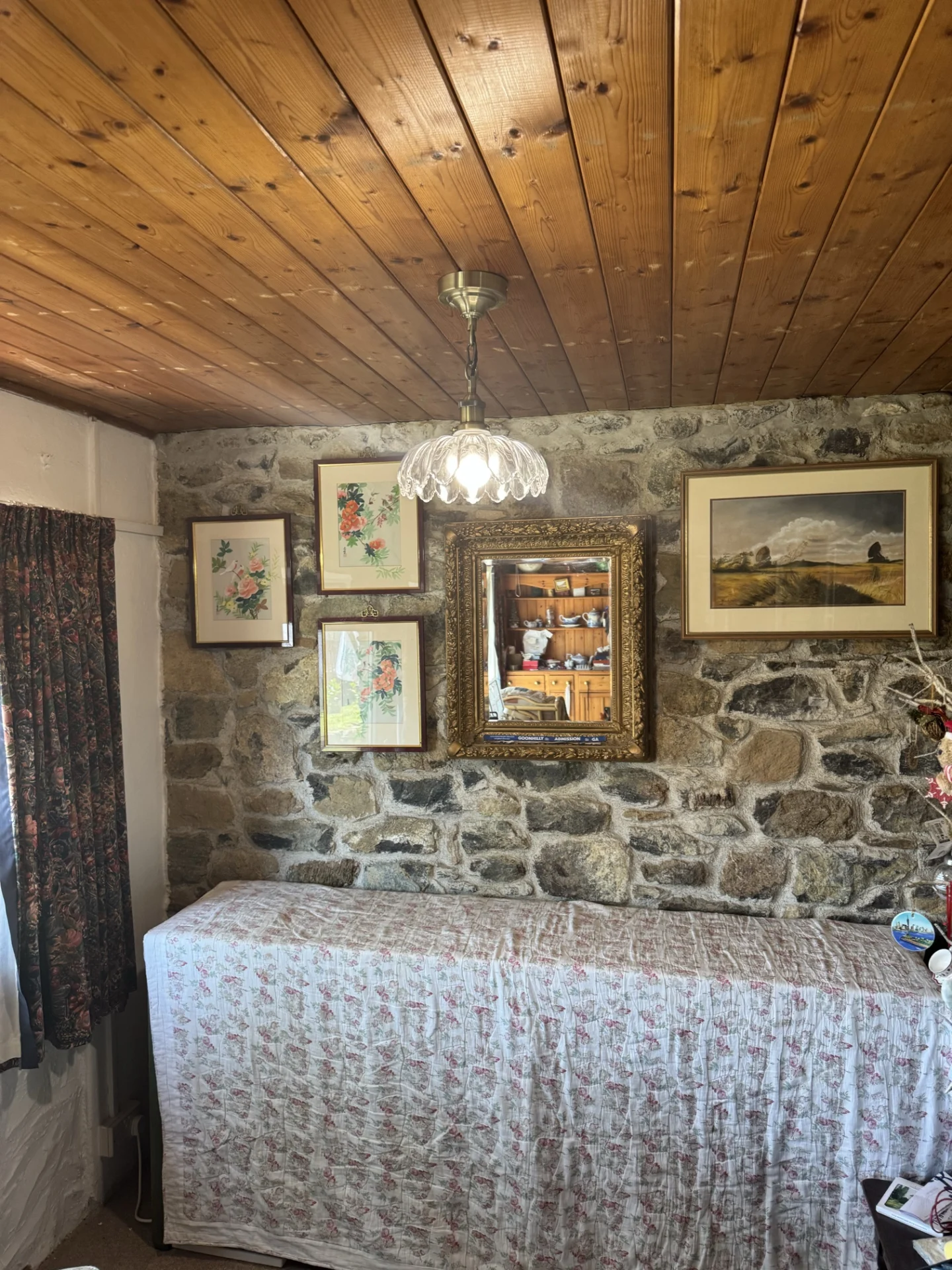

Dining Room Pendant Lights
Two existing pendant light fittings in the rear dining room were replaced with client-supplied units. The existing circuit wiring was already suitable for the connection, so no additional cabling was required – the new fittings were connected directly to what was already in place.
On-Site Adaptations
Any reasonably sized job like this will have moments where the plan on paper doesn’t quite match what’s found on-site. In this case, access to the permanent supply for the front exterior lights wasn’t possible, and the client agreed to adjust the scope accordingly rather than leave the job unfinished. That kind of flexibility and clear communication on the day is all part of how these things get handled properly.
The finished result covered a lot of ground – better garage lighting and power, reliable hot water control, properly separated exterior lighting switching, and a handful of faulty fittings replaced throughout the property.
