A residential property in Stithians received a range of electrical updates, including a new LED bathroom light bar, an IP-rated exterior bulkhead, client-supplied centre light fittings throughout the home, a converted 2-way garage lighting circuit, and a full consumer unit labelling check.
This job came in as a fairly broad domestic electrical package for a homeowner in Stithians – a mix of lighting replacements across different parts of the property and a garage wiring modification. Nothing unusual in that sense, but the range of tasks meant good planning was needed to work through everything in one visit efficiently.

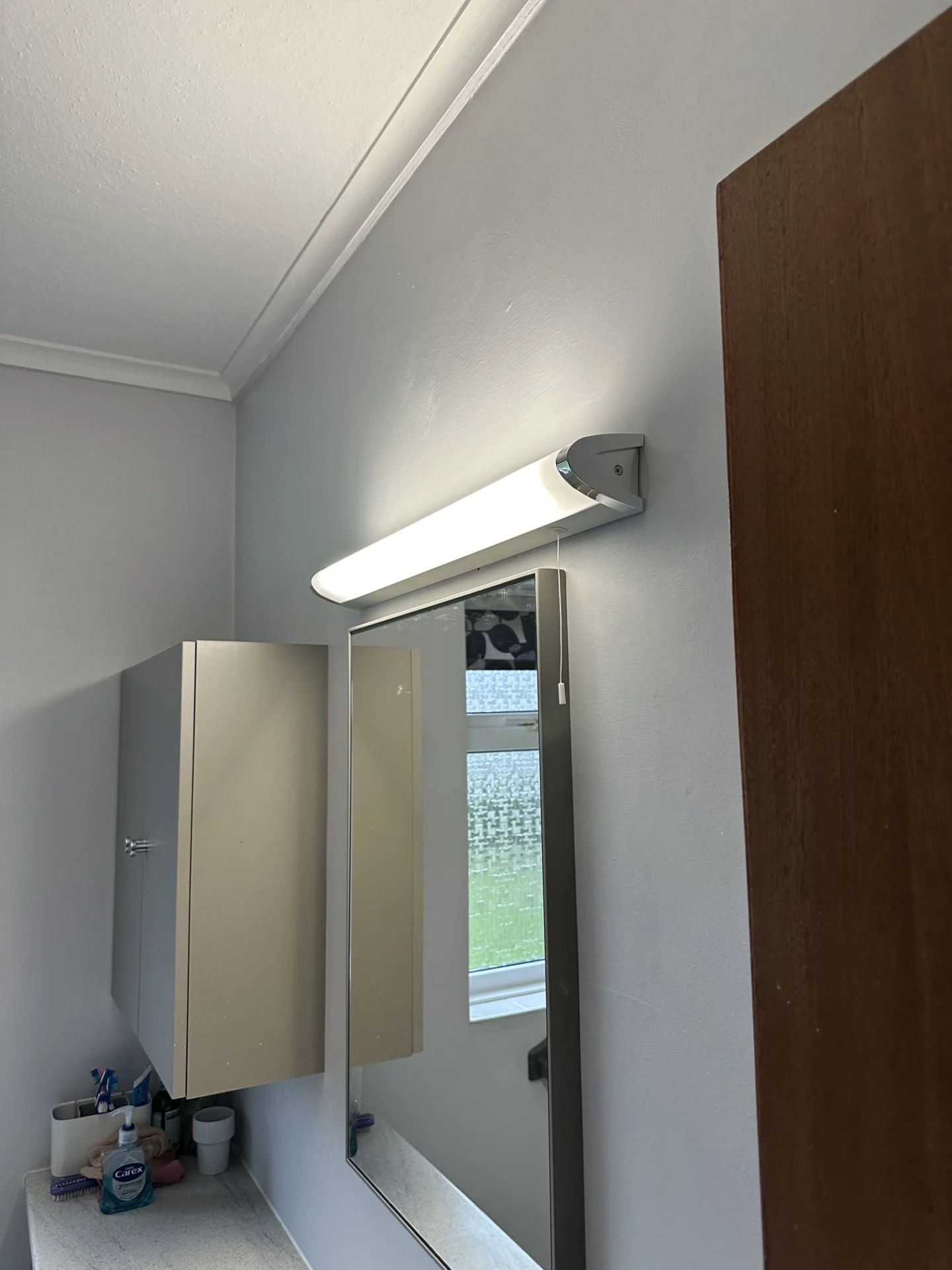

Starting inside, the bathroom mirror light was due a replacement. The existing fitting had come to the end of its life and the customer wanted to step up to an LED light bar – a 65cm opal and chrome unit that runs the full width of the mirror cabinet. These fittings give a much cleaner spread of light across the bathroom compared to older-style strip lights or single bulb fittings. One point worth noting here: the customer had considered a unit with an integrated shaver socket, but the maximum length available with that feature is 500mm. As the space suited a longer fitting, the 65cm option was the better choice, and the shaver outlet was set aside. The light bar is operated by a pull cord, which is the standard approach for bathrooms where you can’t install a conventional wall switch within the zone.

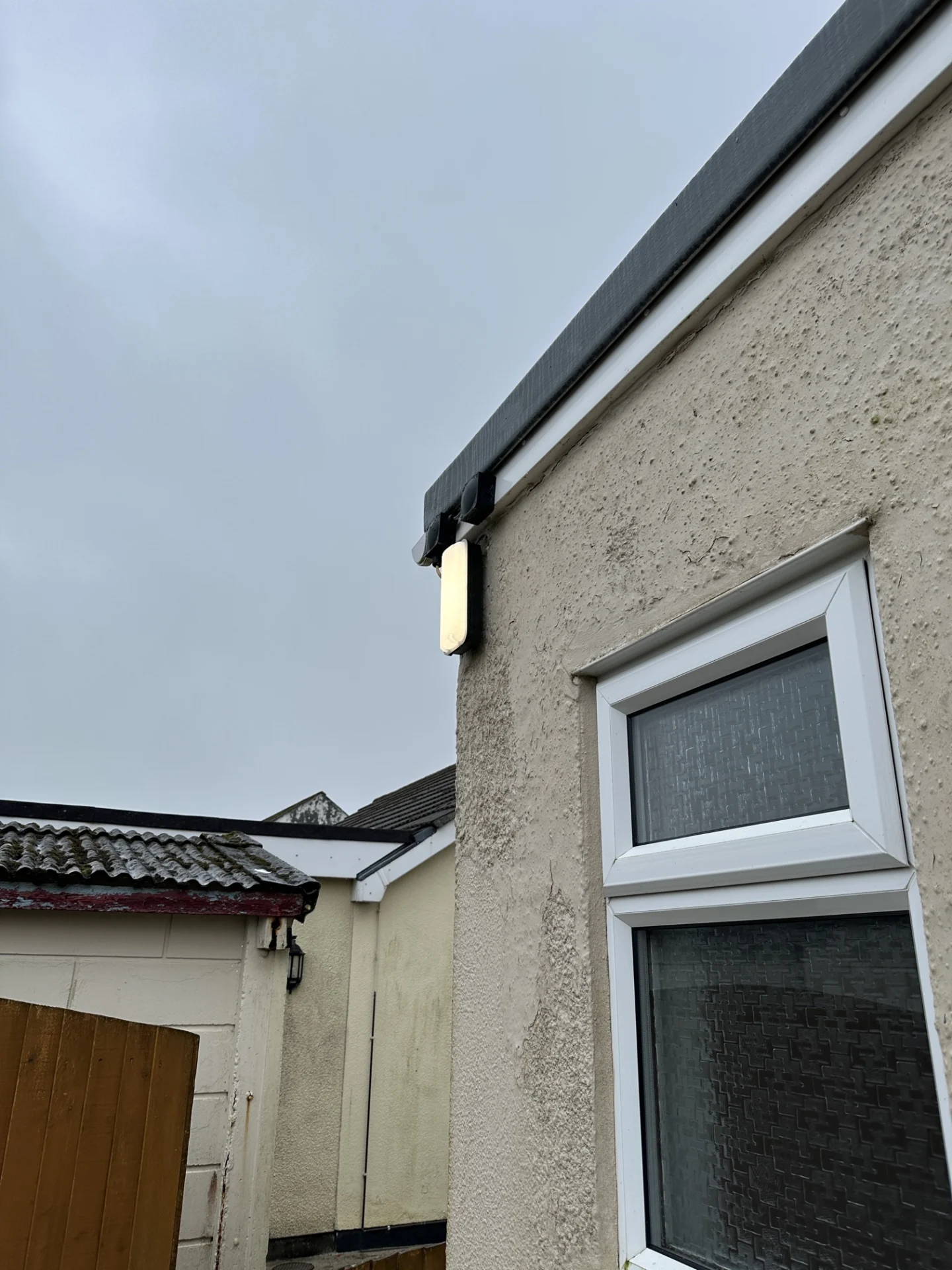

Outside, the rear exterior bulkhead light was also replaced. The original fitting had aged and wasn’t up to the demands of an outdoor Cornwall environment – coastal and rural areas like Stithians can be hard on exterior fittings over time, with moisture ingress being a common culprit. The new unit is IP-rated, meaning it’s properly sealed against the elements and built to last in an outdoor setting. This kind of swap is straightforward in theory, but getting the right IP rating for the location matters – fitting a unit that isn’t rated for exposure just pushes the same problem down the road.
Three internal light fittings were also replaced as part of the same visit – the living room, rear porch, and utility room centre lights. These were all customer-supplied fittings, so the work involved removing the old fittings, confirming the existing ceiling roses and wiring were in good order, and fitting the new units. Working with client-supplied fittings is fairly common and it’s a practical way for customers to get the exact style they want without having to compromise. The utility room and rear porch fittings in particular tend to see a lot of use, so having fresh units in place makes sense.

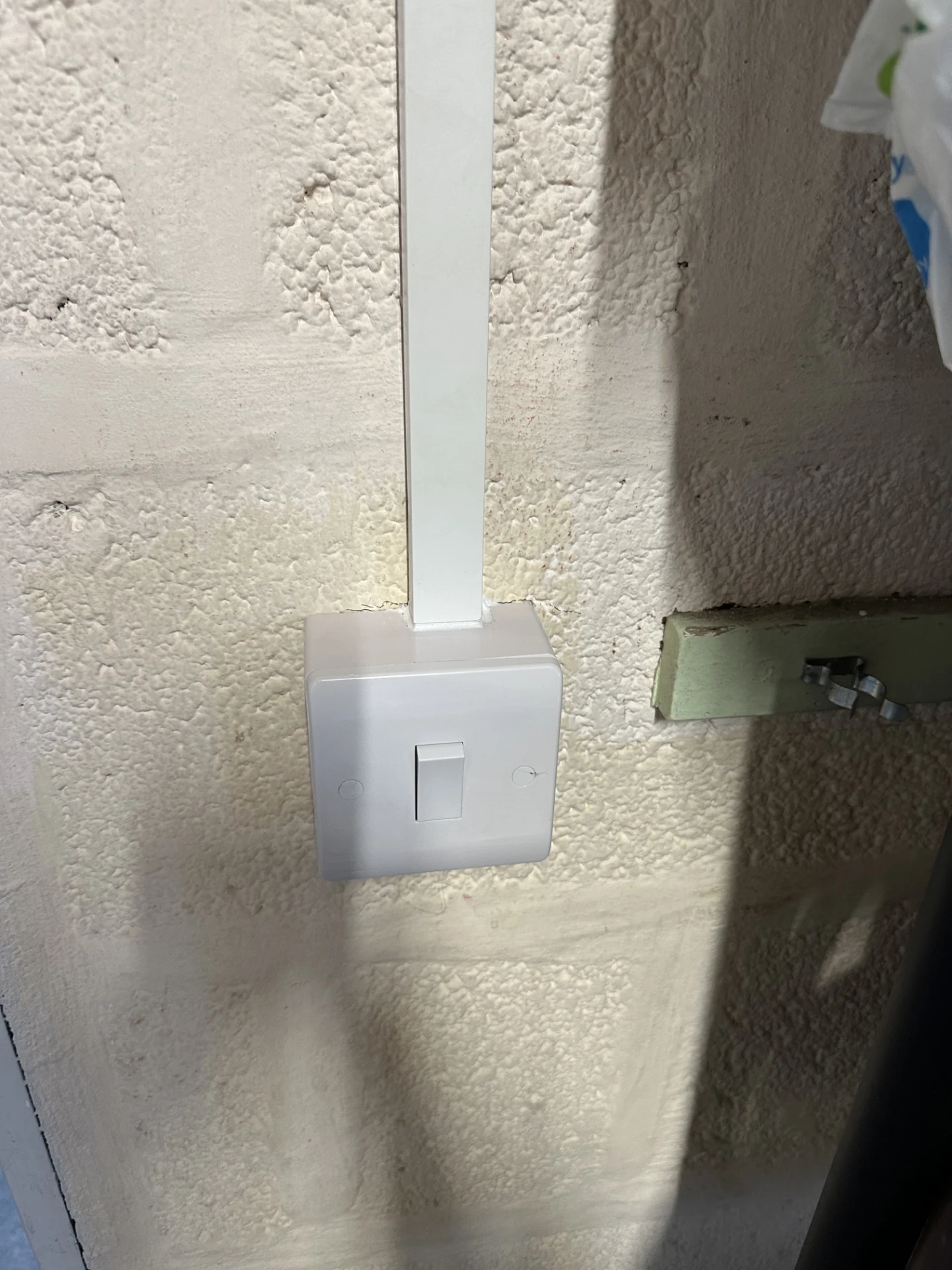

The garage lighting was a more involved piece of work. Previously, the garage had a single switching arrangement, which is fine if you only ever enter and exit from one point – but it becomes awkward when you’re carrying things through and have to walk back to hit the switch. The solution here was converting the circuit to 2-way switching, allowing the light to be controlled from two separate points. A second switch was added at the front of the garage, with new cabling run between the two switch positions. Where the cables ran across the wall surface, they were contained within 25mm white trunking, which keeps everything neat and protected without the need for chasing into the wall. 2-way switching is a well-established wiring arrangement and this kind of modification is a good example of how a small change to a circuit can make a noticeable difference to how a space actually works day-to-day.
Stithians is a village a few miles south of Redruth in mid-Cornwall, and this kind of multi-task residential job is typical of the domestic work we carry out across the area. Getting a full range of electrical updates done in a single visit keeps disruption to a minimum and means the customer isn’t waiting around for multiple return trips.
