Modernising electrical safety with a complete consumer unit replacement in Truro, featuring integrated surge protection and full RCBO configuration for maximum protection against electrical faults and power surges.
Modern electrical systems require robust protection that older consumer units simply cannot provide. This Truro property needed urgent attention due to inadequate electrical protection, with the existing consumer unit failing to meet current safety standards and offering no protection against electric shock.
The original consumer unit posed significant safety risks to the property and its occupants. Without proper electrical protection, the home was vulnerable to electrical faults that could result in fire or electrocution. The outdated system lacked the sophisticated safety features that modern electrical installations demand, making replacement a priority for the homeowners.

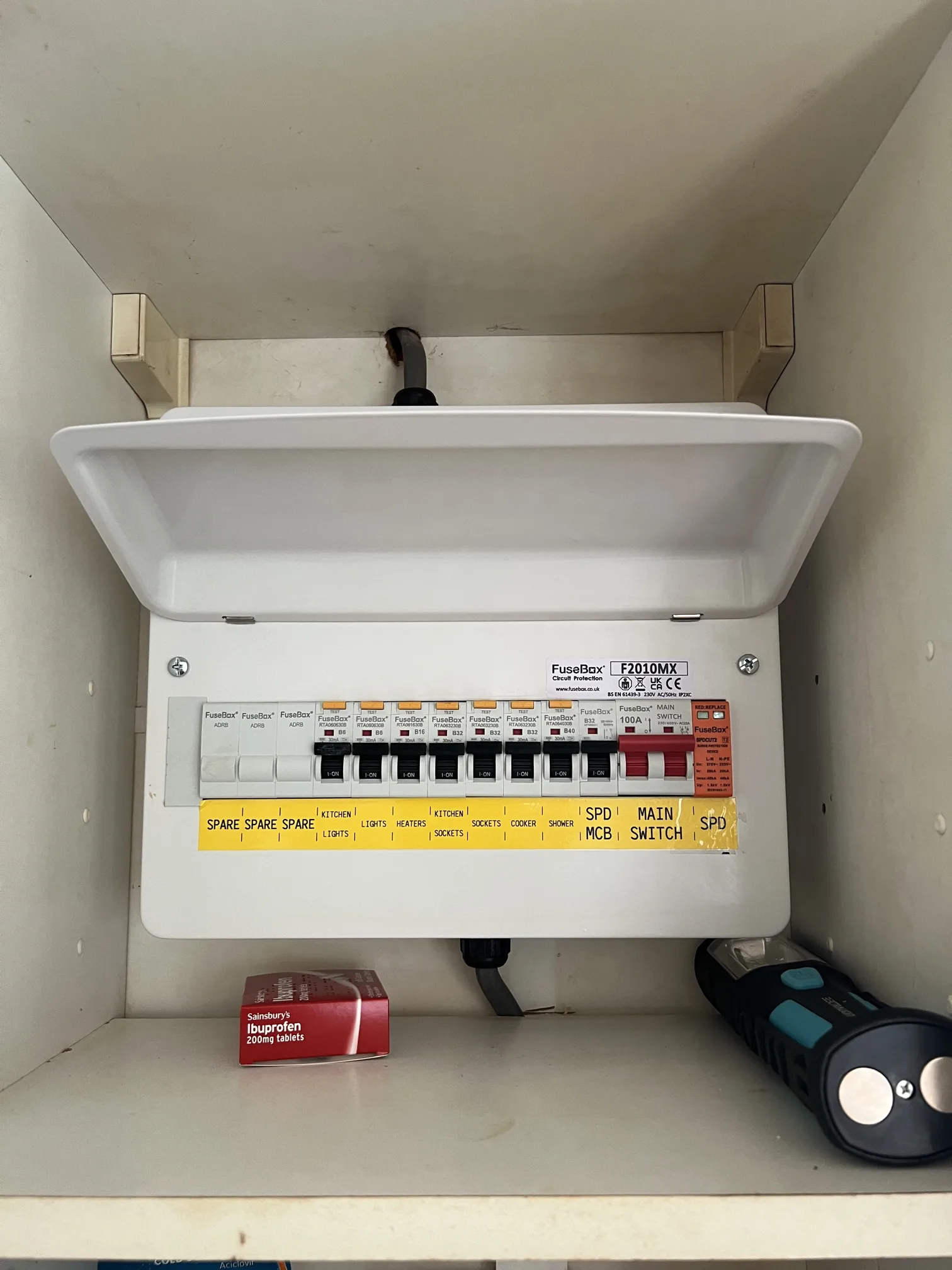

Installing a fire-rated 10-way RCBO consumer unit transformed the property’s electrical safety profile. RCBO (Residual Current Breaker with Overcurrent protection) devices provide dual protection by combining the functions of an RCD and MCB in a single unit. This means each circuit receives individual protection against both overcurrent and earth leakage faults, offering superior safety compared to traditional consumer units that rely on shared RCD protection.
The new consumer unit features integrated surge protection device (SPD) technology, which protects connected electronics from voltage fluctuations and power surges from the electrical grid. Modern homes contain numerous sensitive electronic devices that can be damaged by power surges, from televisions and computers to smart home systems and kitchen appliances. The SPD acts as a safeguard, automatically diverting excess voltage away from these valuable items.
Compliance with the 18th Edition of the wiring regulations was a key requirement for this installation. The current regulations emphasise improved safety standards, including mandatory surge protection for new installations and enhanced protection against electrical fires. The new consumer unit meets all these requirements, bringing the property up to current electrical safety standards.
The installation process involved comprehensive electrical testing both before and after the consumer unit replacement. Initial testing revealed the condition of existing circuits and identified any underlying faults that needed addressing. This thorough approach prevents future problems and guarantees that the new consumer unit will function correctly with the existing electrical installation.
Each circuit within the property received individual RCBO protection, with the configuration tailored to the specific electrical demands of the home. The 40A RCBO handles high-demand circuits such as electric showers or cookers, while the 32A RCBOs typically protect ring main circuits supplying socket outlets throughout the property. The 20A and 16A RCBOs serve radial circuits for specific appliances or areas, and the 6A RCBOs protect lighting circuits.
This individualised approach to circuit protection offers significant advantages over traditional consumer units. If a fault occurs on one circuit, only that specific RCBO will trip, leaving the rest of the electrical installation functioning normally. This reduces inconvenience for homeowners and makes fault-finding much easier for electricians.
The fire-rated enclosure provides additional safety benefits by containing any potential electrical faults within the consumer unit itself. This construction standard helps prevent electrical fires from spreading and gives occupants more time to evacuate safely if an electrical emergency occurs.
Building Control Notification was submitted following the installation, completing the legal requirements for this type of electrical work. The Electrical Installation Certificate (EIC) provides documented proof that the installation meets current regulations and has been tested to confirm safe operation.

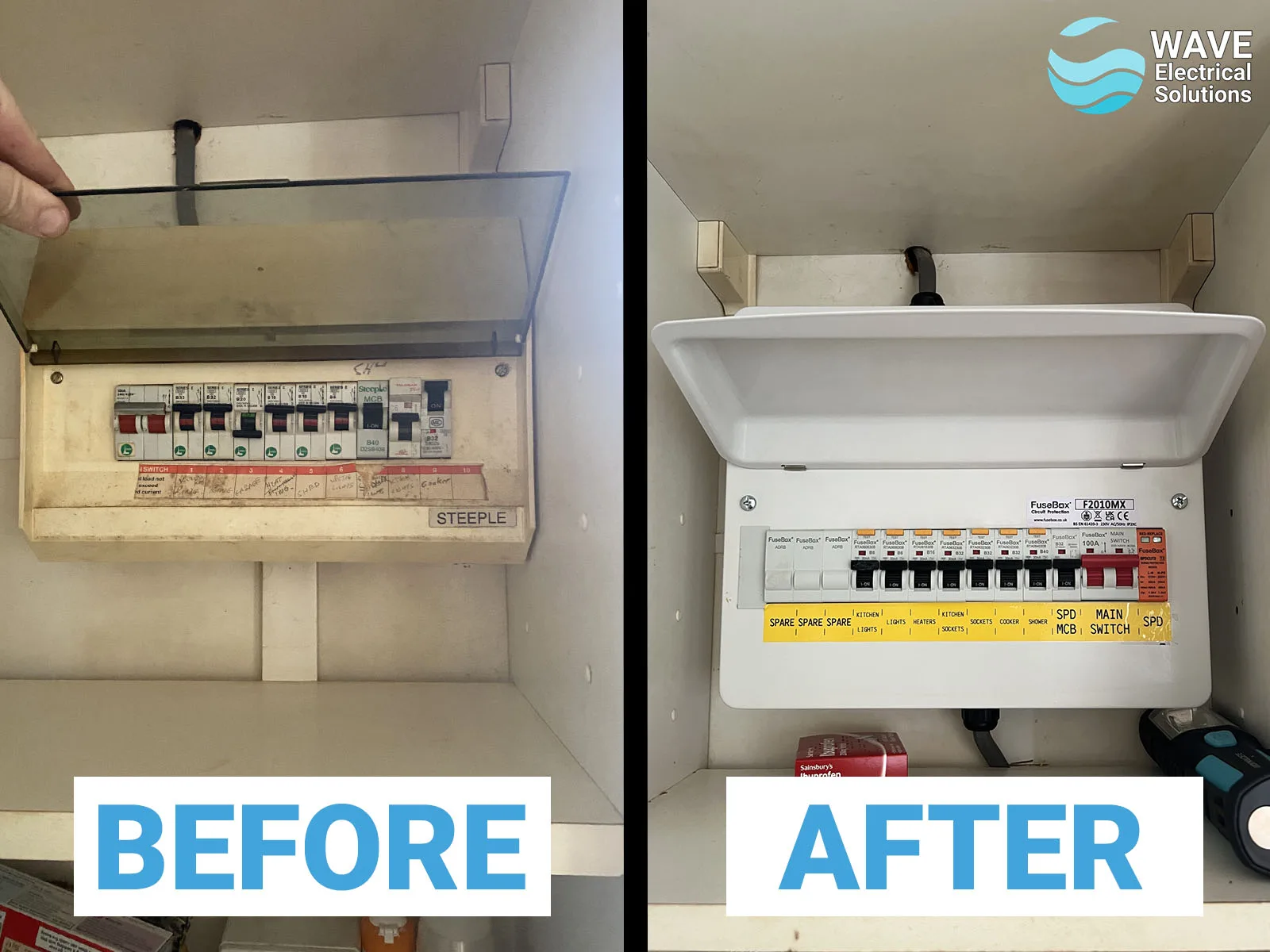

The transformation from an outdated consumer unit to a modern RCBO system represents a significant upgrade in electrical safety. The property now benefits from state-of-the-art protection against electrical faults, surge damage, and fire risks. This investment in electrical safety protects both the property and its occupants while meeting all current regulatory requirements.
