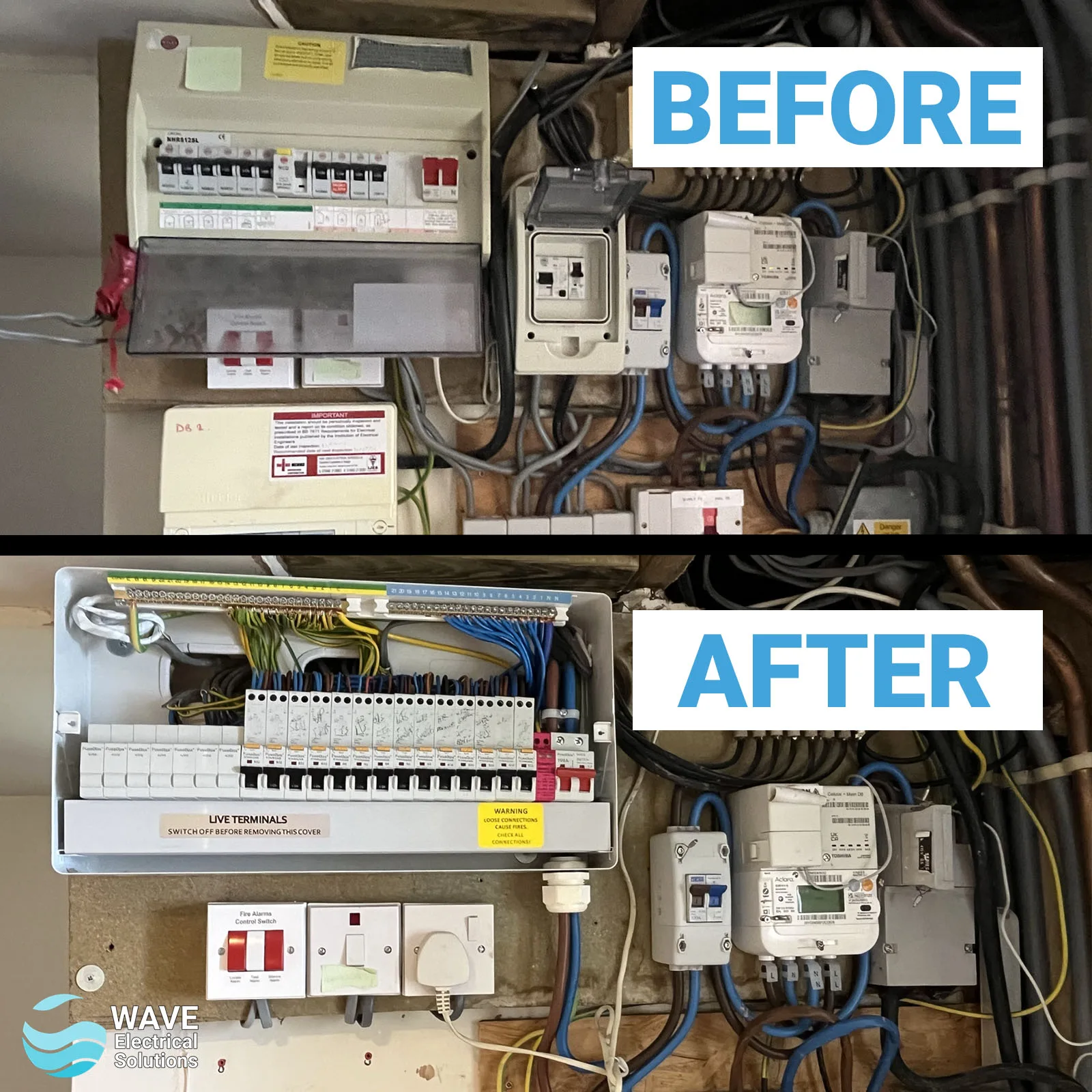

Modern consumer unit installation with integrated surge protection device and 20-way RCBO distribution board, bringing electrical systems up to current 18th Edition standards in Tintagel property.
When electrical systems reach a certain age, they often require comprehensive upgrades to meet modern safety standards and provide adequate protection for today’s electronic devices. This Tintagel property presented several observations from an electrical condition report that needed addressing through a complete consumer unit replacement.

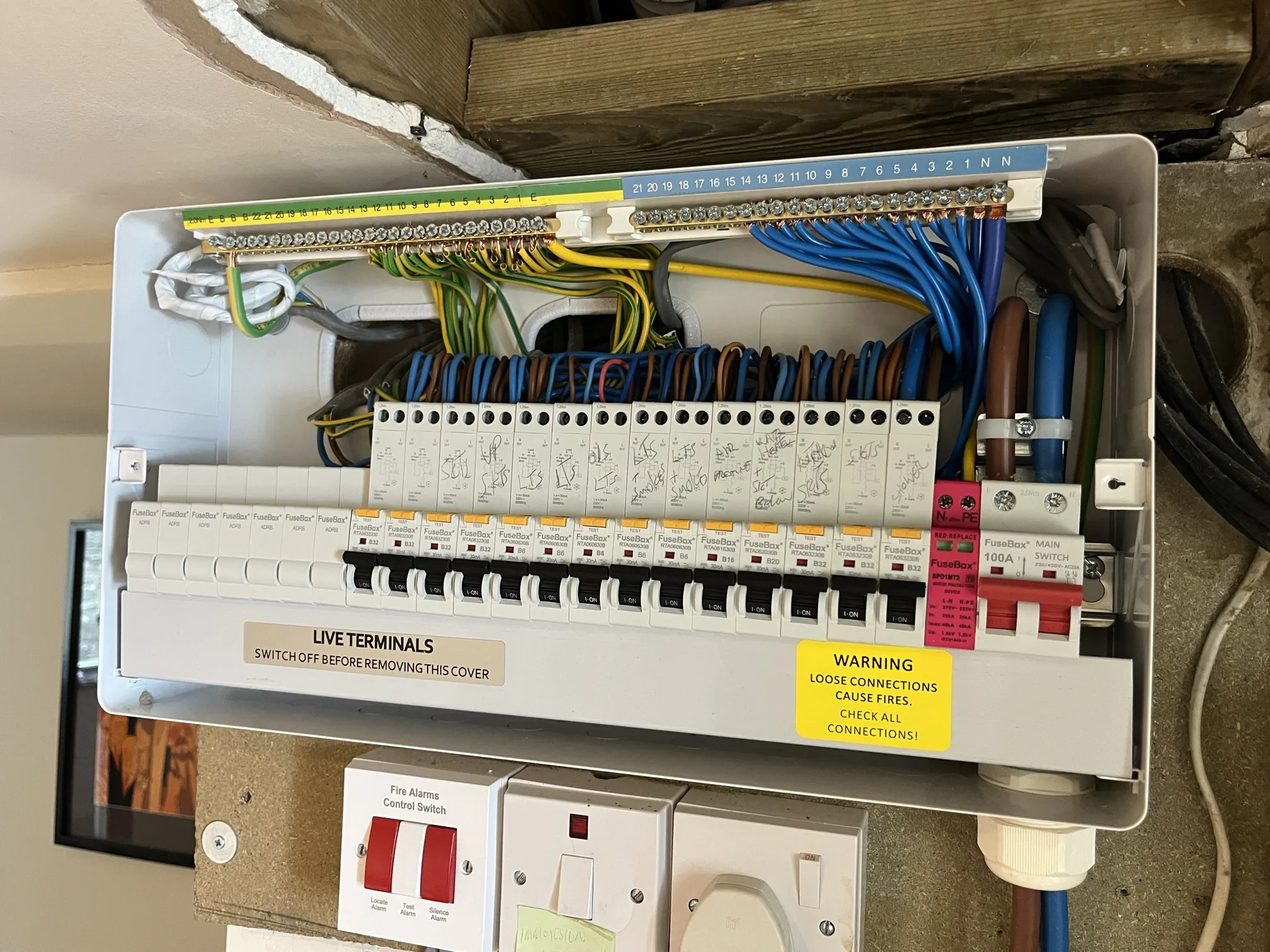

The existing electrical distribution board had reached the point where consolidation into a single, modern unit would provide better protection and compliance with current regulations. Multiple circuits throughout the property required bringing together under one comprehensive fire-rated consumer unit, replacing the older installation with a 20-way RCBO system that offers individual protection for each circuit.
RCBO technology provides both overcurrent and earth leakage protection in a single device, meaning each circuit receives dedicated protection without the need for separate RCD units covering multiple circuits. This approach reduces the likelihood of nuisance tripping, where a fault on one circuit would previously affect several others. Each RCBO monitors its individual circuit continuously, providing immediate disconnection when abnormal conditions occur.
The installation included various amperage ratings to match the specific requirements of different circuits throughout the property. Lower-rated 6-amp RCBOs protect lighting circuits, while 16-amp units cover standard power circuits. Higher-rated 20-amp and 32-amp devices serve more demanding circuits such as those feeding electric showers, cookers, or immersion heaters. The heaviest-duty 40-amp RCBOs handle the most significant electrical loads in the property.
A surge protection device formed an integral part of the new consumer unit, addressing the increasing vulnerability of modern electronic equipment to power surges. These devices monitor the incoming electrical supply continuously, detecting voltage spikes that could damage connected equipment. When a surge occurs, the SPD diverts excess voltage safely to earth, protecting televisions, computers, kitchen appliances, and other sensitive electronics throughout the property.
The meter tails connecting the electricity meter to the consumer unit required upgrading to 25mm double-insulated cabling. This larger cable size handles higher electrical loads more efficiently whilst meeting current installation standards. The double insulation provides additional protection against electrical faults, with two layers of insulation rather than relying on single-insulated cables with separate earth conductors.
Fire-rated consumer units have become standard in modern electrical installations, designed to contain electrical faults within the enclosure and prevent the spread of fire to surrounding areas. The fire-rated material can withstand high temperatures and resist ignition, providing valuable time for occupants to evacuate safely in the event of an electrical fault.
All work followed the 18th Edition of the wiring regulations, which introduced several important safety improvements over previous editions. These regulations place greater emphasis on surge protection, fire safety, and the protection of circuits in locations where people might be vulnerable to electric shock.
The installation process involved carefully isolating the existing electrical supply, removing the old consumer unit, and installing the new fire-rated enclosure. Each circuit required individual testing to verify proper connection and protection before energising the new system. The Henley blocks allowed for proper connection of multiple circuits to the main incoming supply, whilst grommets provided neat cable entry points that prevent damage to cable insulation.
One specific upgrade involved replacing a dimmer switch back box in the lounge area. The existing shallow back box required replacement with a deeper 47mm version to accommodate modern dimmer switches properly. A membrane spacer behind the switch prevents moisture ingress and provides additional insulation, particularly important in locations where condensation might occur.
Following installation, comprehensive electrical testing verified that all circuits operated correctly and safely. This testing process checks insulation resistance, earth continuity, and RCD operation across all circuits. The results form part of the Electrical Installation Certificate, which provides documentation of the work carried out and confirms compliance with current standards.
Building Control notification accompanied the installation, informing local authorities of the electrical work undertaken. This notification process helps maintain records of electrical modifications and supports property transactions by providing evidence of compliant electrical work.
The completed installation provides reliable electrical distribution with modern safety features, individual circuit protection, and surge protection for connected electronics. The fire-rated consumer unit offers enhanced safety, whilst the 20-way capacity allows for future electrical additions without requiring further consumer unit upgrades.
