A full domestic electrical upgrade for a homeowner in Camborne, covering decorative kitchen socket replacements with a full circuit test, loft LED batten lighting, outdoor socket upgrades to IP65 double outlets, a new armoured cable supply to a garden shed with internal power and lighting, and a porch light fitting replacement.
This was a solid day’s work for a homeowner in Camborne – the kind of job where you’re covering several areas of the property and ticking off a list of things that had been building up. Rather than separate callouts for each task, everything was grouped together, which is always a more practical and cost-effective way to approach this type of work.

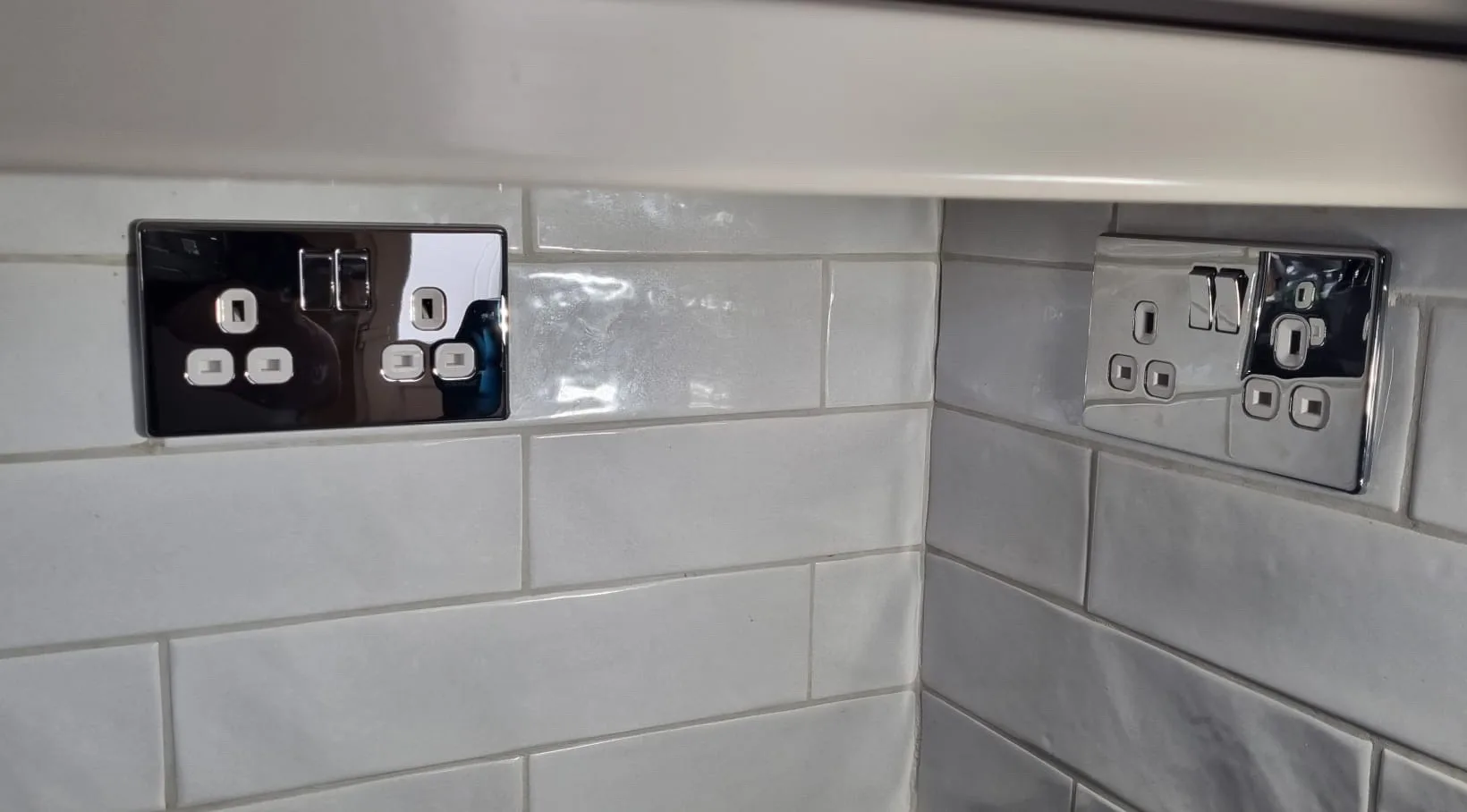

The kitchen was the starting point. Two socket outlets needed replacing with decorative units to match the style already fitted elsewhere in the room – straightforward enough on the face of it, but one of the existing sockets had visible thermal damage. That changes things. Thermal damage to a socket usually means the connection at that point has been arcing or running hot, and before fitting new faceplates it made sense to find out what condition the rest of the circuit was in. A full electrical test of the kitchen socket circuit was carried out, with every outlet position on that circuit individually tested and checked. Satisfied the wiring was sound, the two decorative replacements were then fitted and matched to the existing outlets in the room. It’s the sort of thing that adds time to what looks like a simple job on paper, but it’s the right way to do it.

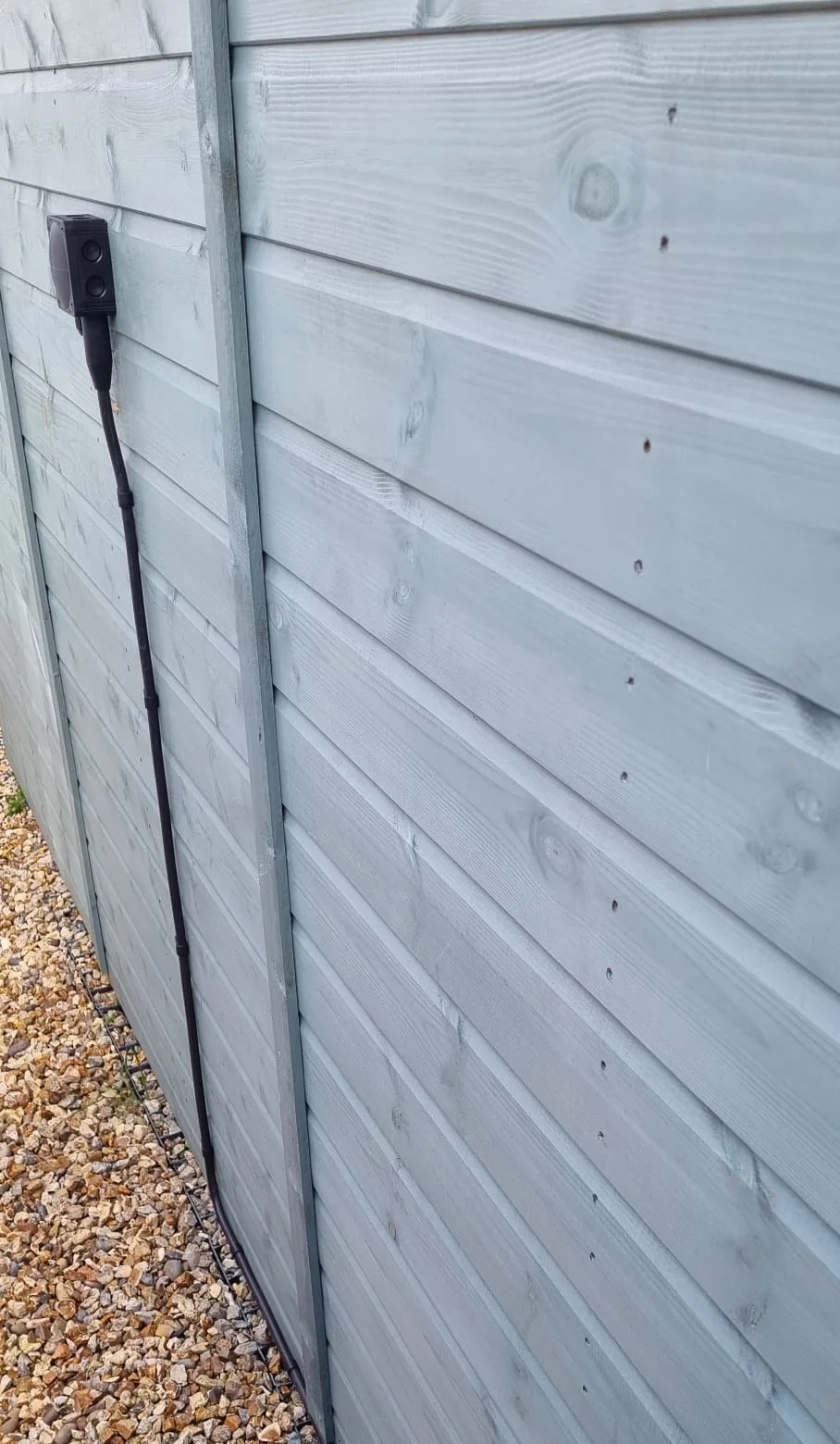

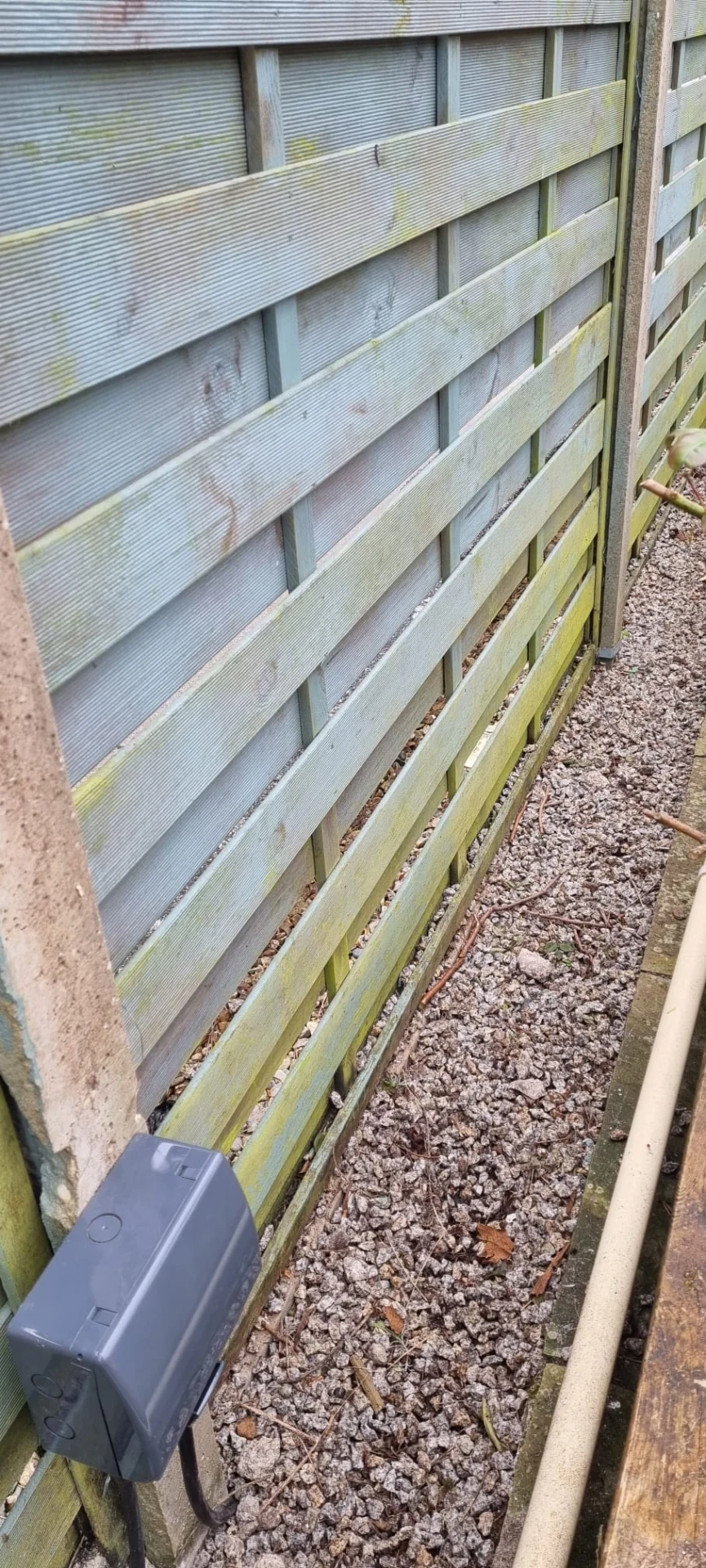

Outside, the property had two existing single IP-rated sockets – one at the rear of the house, one on the garden fence – and both were upgraded from 1-gang to 2-gang IP65 units. Anyone who’s had a single outdoor socket knows how quickly it becomes a bottleneck; a garden can easily need power in two or three places at once when you’re working outside. Converting both to double outlets solves that. IP65 units are rated against water jets, so they’re well suited to exposed positions where they’ll get rained on and may occasionally see a bit of spray from a pressure washer.

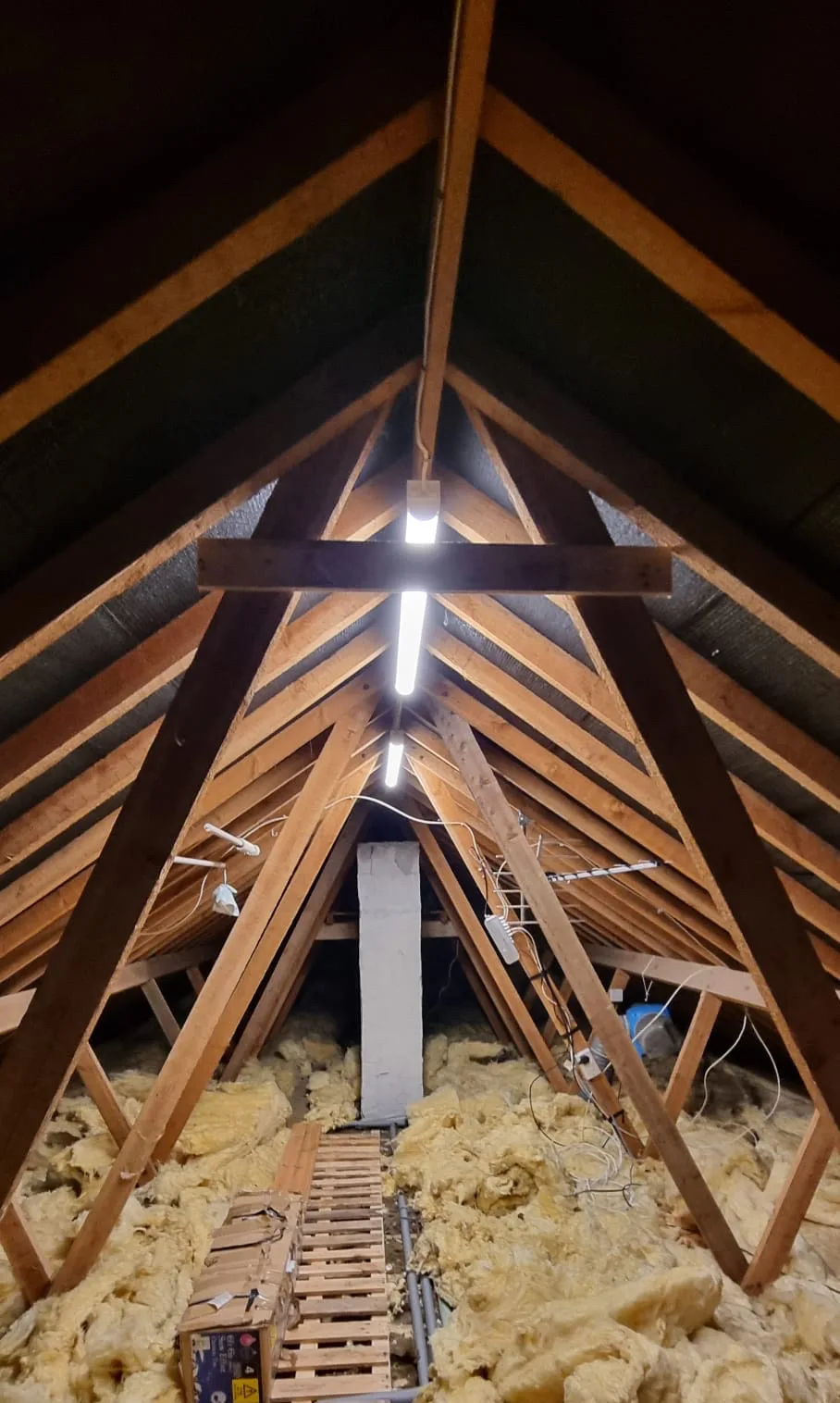

The loft was next. The existing loft light was removed and replaced with two 4ft LED batten lights, one positioned at each end of the space. Single loft bulbs are fairly common in older properties, but they’re not particularly useful when you’re trying to find something stored at the far end of a long roof space. Running battens at either end gives even, practical coverage throughout. While the work was being carried out in the loft, the existing cables – which hadn’t been clipped – were tidied and neatly clipped as part of the same visit. It doesn’t add much time but it leaves the loft in a much better condition, both practically and in terms of how a future inspection would view the installation.

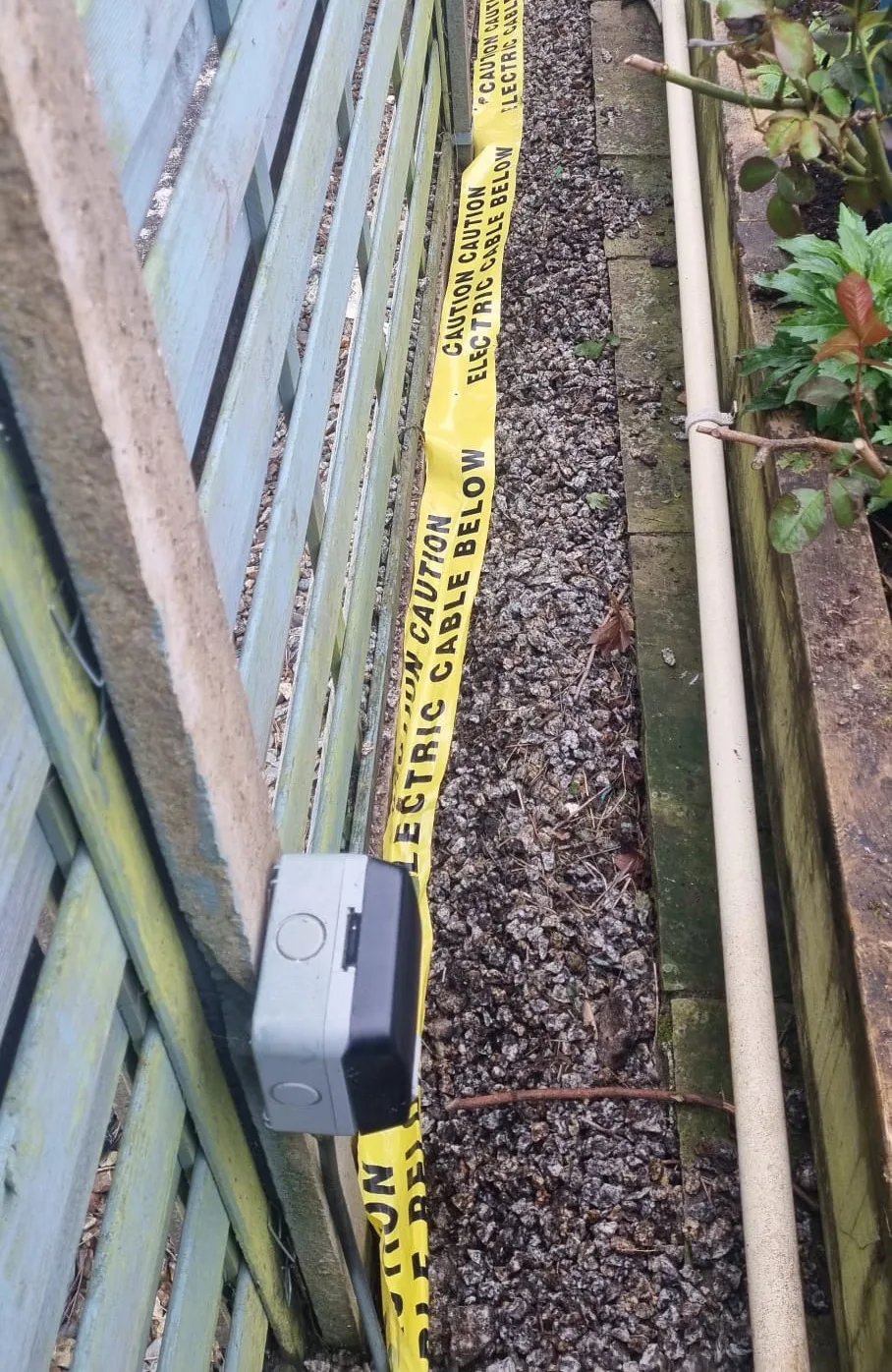

Getting power out to the garden shed was the most involved part of the day. The feed was taken from the existing rear garden socket, with 2.5mm SWA cable run from the fence to the shed. Steel wire armoured cable is the correct choice for this kind of outdoor run – the steel armour layer provides physical protection against accidental damage from digging or garden tools, which matters for any cable running underground or in an exposed route across a garden. Marker tape was laid over the buried section so anyone carrying out work in that area in future will know there’s a cable below. From the point the supply enters the shed, all internal wiring was surface-mounted and neatly clipped to the timber throughout.

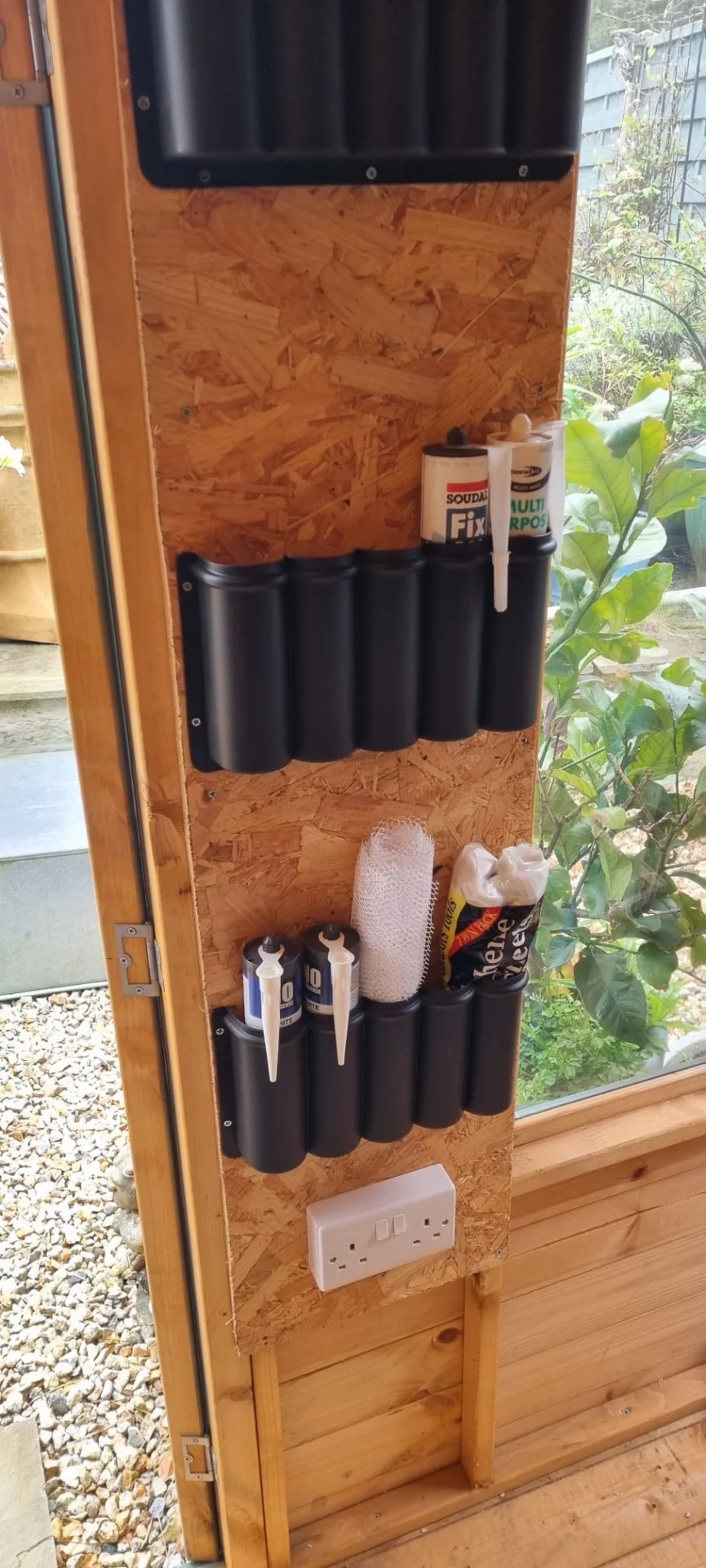

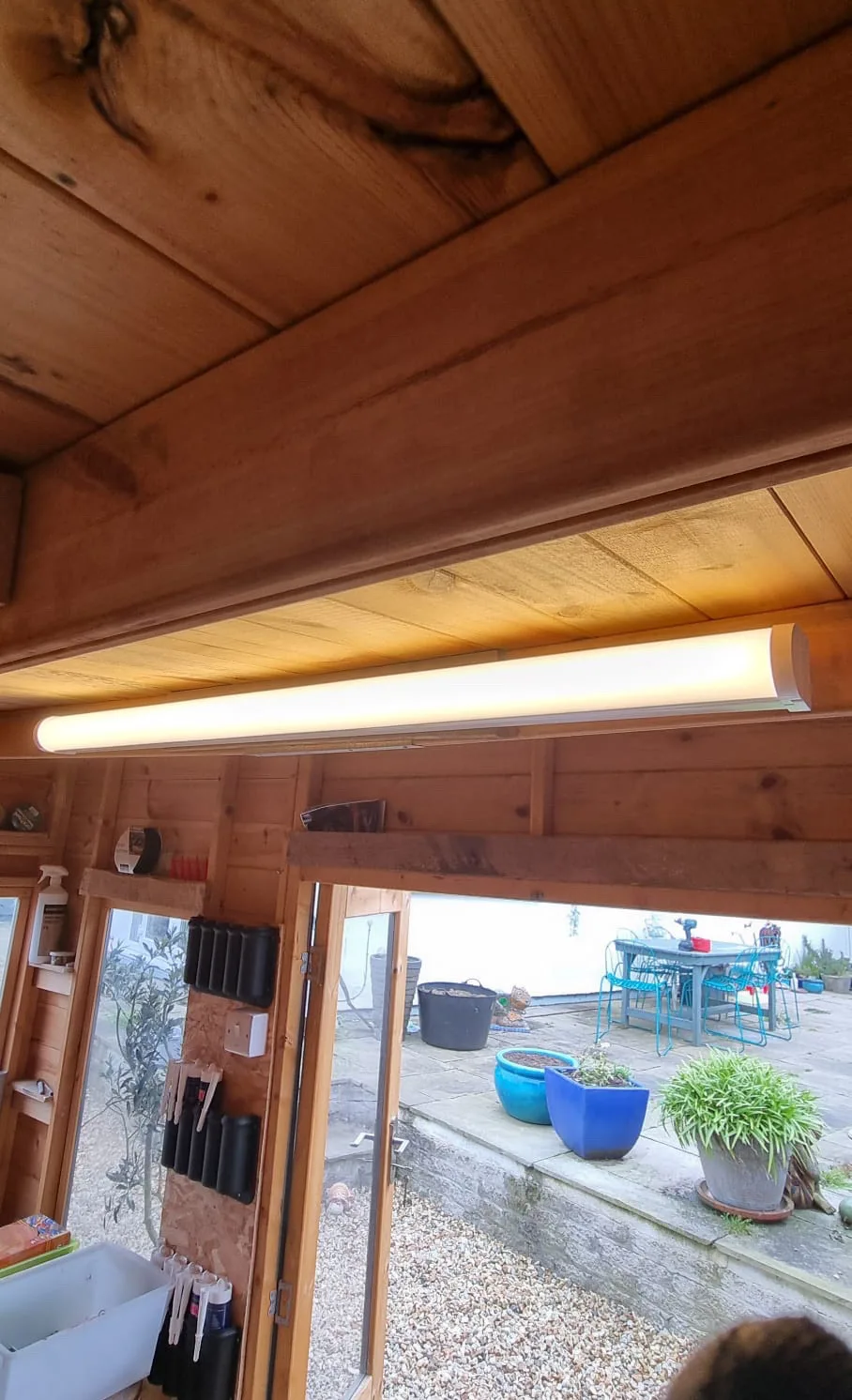

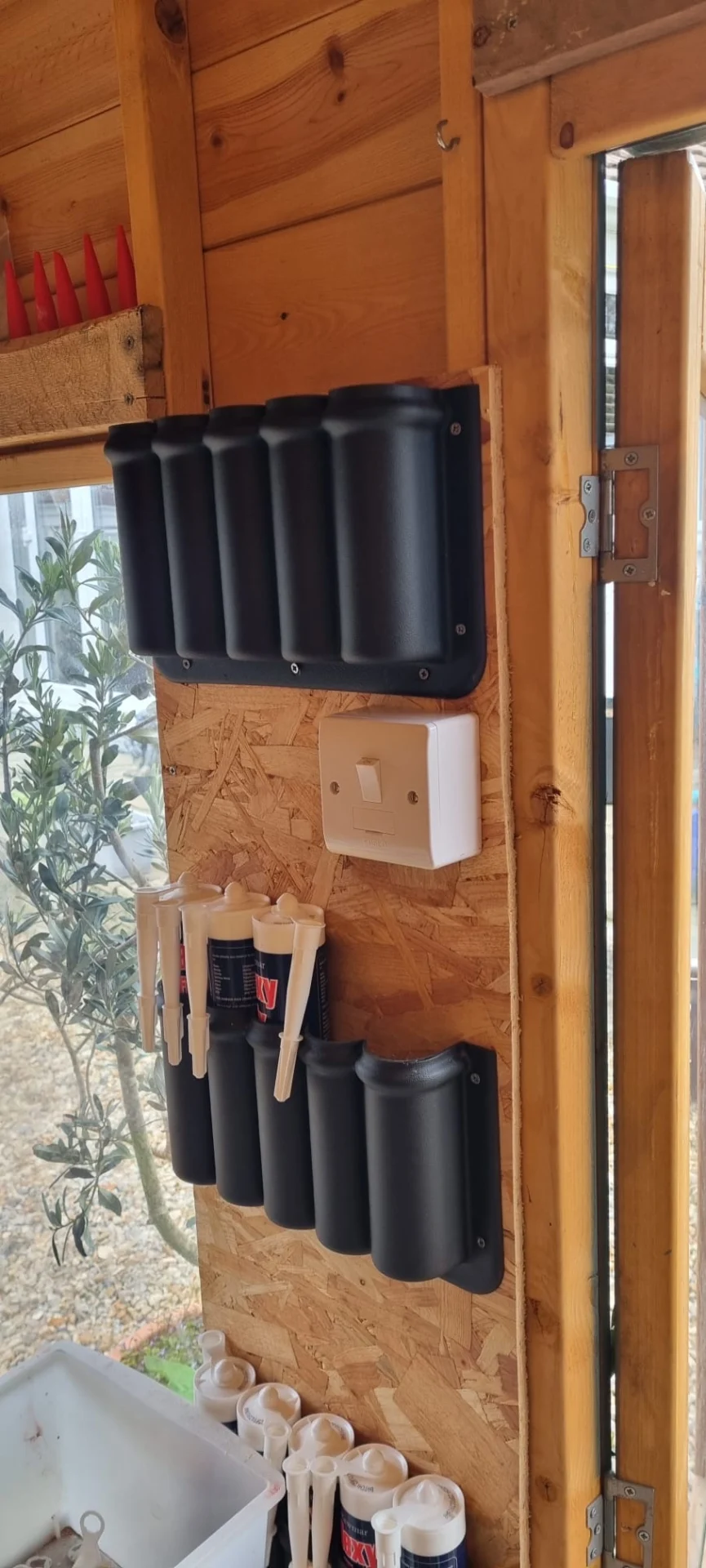

Inside the shed itself, two double socket outlets were surface-mounted, giving four socket positions in total – practical for a working shed, hobby space or garden room where you might want to run tools, a lamp, a charger and something else all at the same time. The lighting was a 4ft LED batten, controlled by a switched fused spur positioned at the entrance to the shed. The fused spur serves as the light switch for the circuit and also provides the required overcurrent protection within the shed’s supply. It’s a tidy, functional arrangement that avoids the cost and complexity of installing a separate consumer unit for a relatively straightforward outbuilding setup.
To close out the job, the porch light fitting was swapped for a client-supplied replacement. A quick change, but one that finishes the front of the house off neatly and rounds off a varied day across the whole property.
For homeowners in Camborne looking at similar work – whether that’s outdoor socket upgrades, getting power out to a shed or outbuilding, refreshing internal sockets or sorting out loft lighting – grouping it all into a single visit is nearly always the sensible approach. It reduces disruption and tends to work out more cost-efficient than booking separate jobs for each task.
