Complete electrical system modernisation in Goonhavern featuring dual fuseboard upgrades with surge protection, steel wire armoured cable installation to outbuildings, and weatherproof socket outlets for enhanced outdoor electrical access.
Modern electrical systems require robust protection and flexible power distribution, particularly when properties include outbuildings and workshop spaces. This Goonhavern project demonstrates how thoughtful electrical planning can transform both indoor safety standards and outdoor functionality through strategic fuseboard consolidation and armoured cable installations.
The project began with a comprehensive electrical inspection and testing programme covering fourteen individual circuits throughout the property. This thorough assessment identified the existing electrical infrastructure’s condition and highlighted areas requiring immediate attention to meet current safety standards. The inspection process revealed opportunities for significant system improvements that would benefit both safety and practical usage.

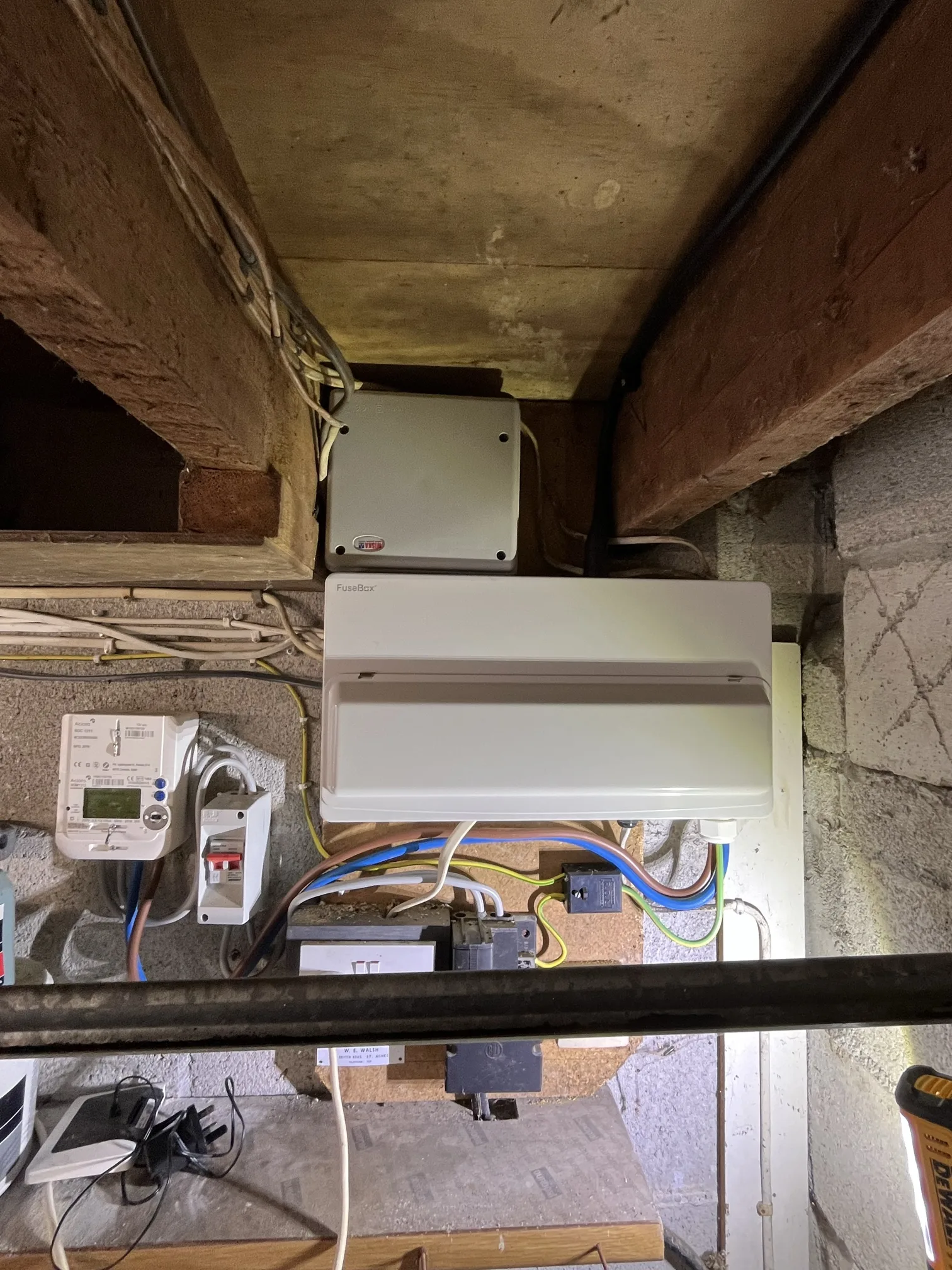

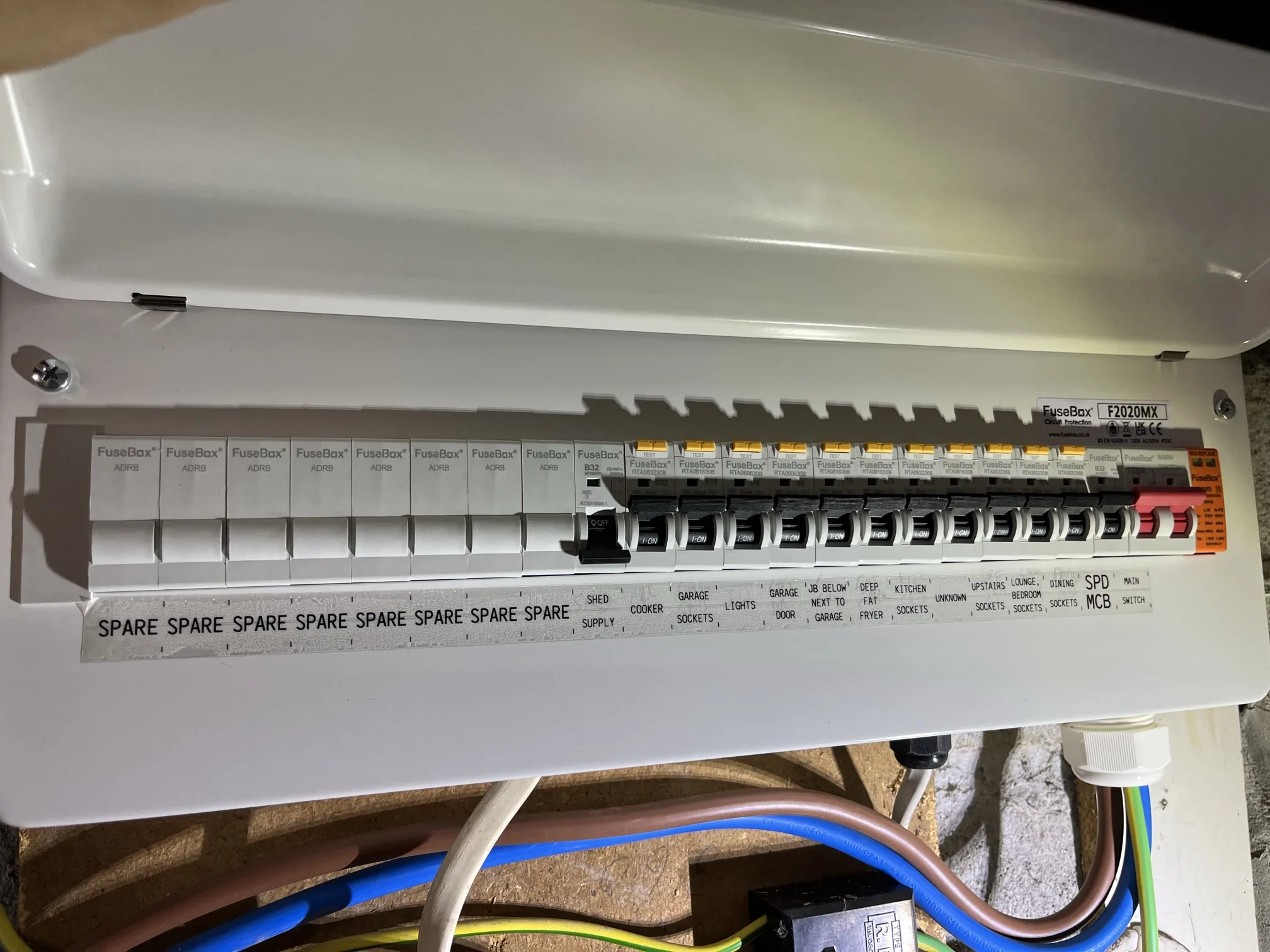

Central to this electrical upgrade was the installation of a fire-rated 20-way RCBO consumer unit featuring integrated surge protection technology. This modern fuseboard represents a substantial advancement over older distribution systems, with each circuit protected by individual RCBOs providing both overload protection and earth fault detection. The surge protection device offers crucial safeguarding for connected electronics against voltage fluctuations and power surges from the electrical grid, an increasingly important consideration given the sensitivity of modern household equipment.
The incoming electrical supply received careful attention through the installation of upgraded 25mm double insulated meter tails. This enhancement supports the increased electrical capacity whilst maintaining compliance with 18th Edition wiring regulations. The larger cable cross-section reduces voltage drop and improves overall system efficiency, particularly important when supplying multiple outbuildings and higher-powered equipment.
A significant aspect of this project involved establishing reliable electrical supply to the property’s outbuildings through a dedicated sub-main installation. The 6mm steel wire armoured cable provides robust protection against mechanical damage whilst delivering dependable power distribution across the property. This cable routing required careful planning to traverse the garage space, cross existing timber bridging members, and follow the garden wall boundary to reach the first outbuilding location.

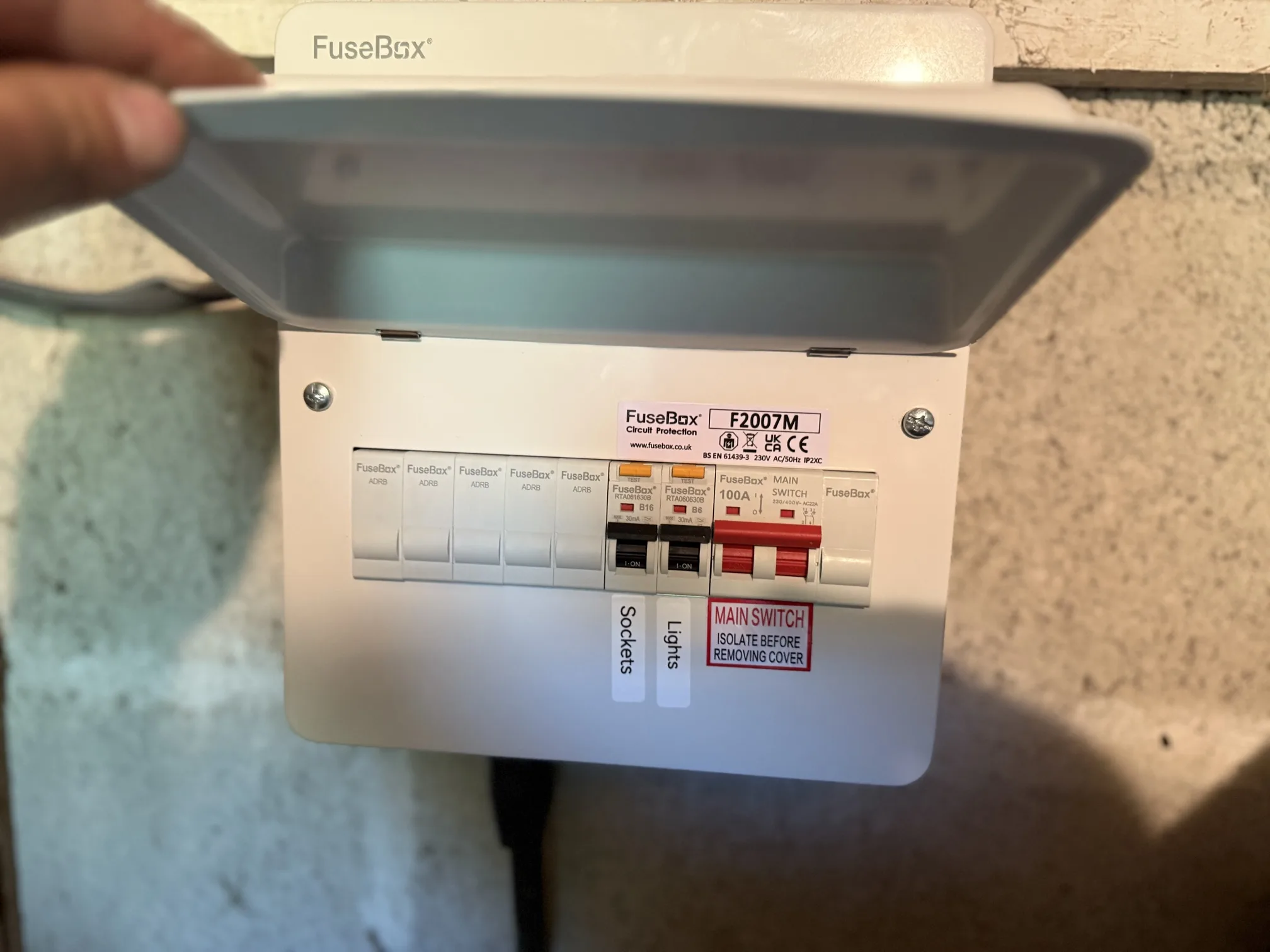

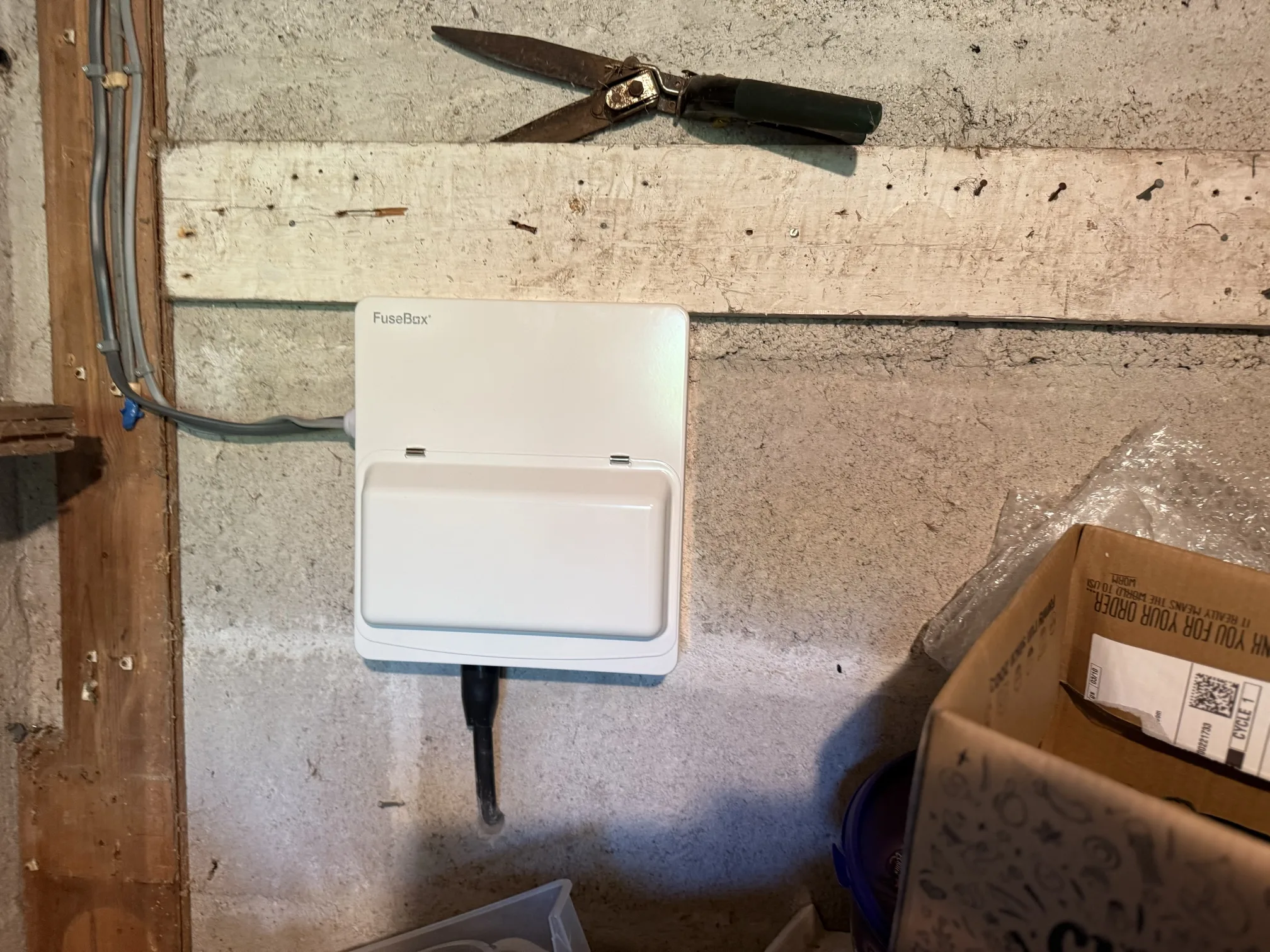

The sub-main consumer unit installation in the outbuilding creates a dedicated electrical distribution point for garden and workshop circuits. This approach offers several advantages over extending individual circuits from the main property, including reduced voltage drop over long cable runs and simplified circuit protection arrangements. The seven-way consumer unit provides sufficient capacity for current requirements whilst allowing future expansion possibilities.

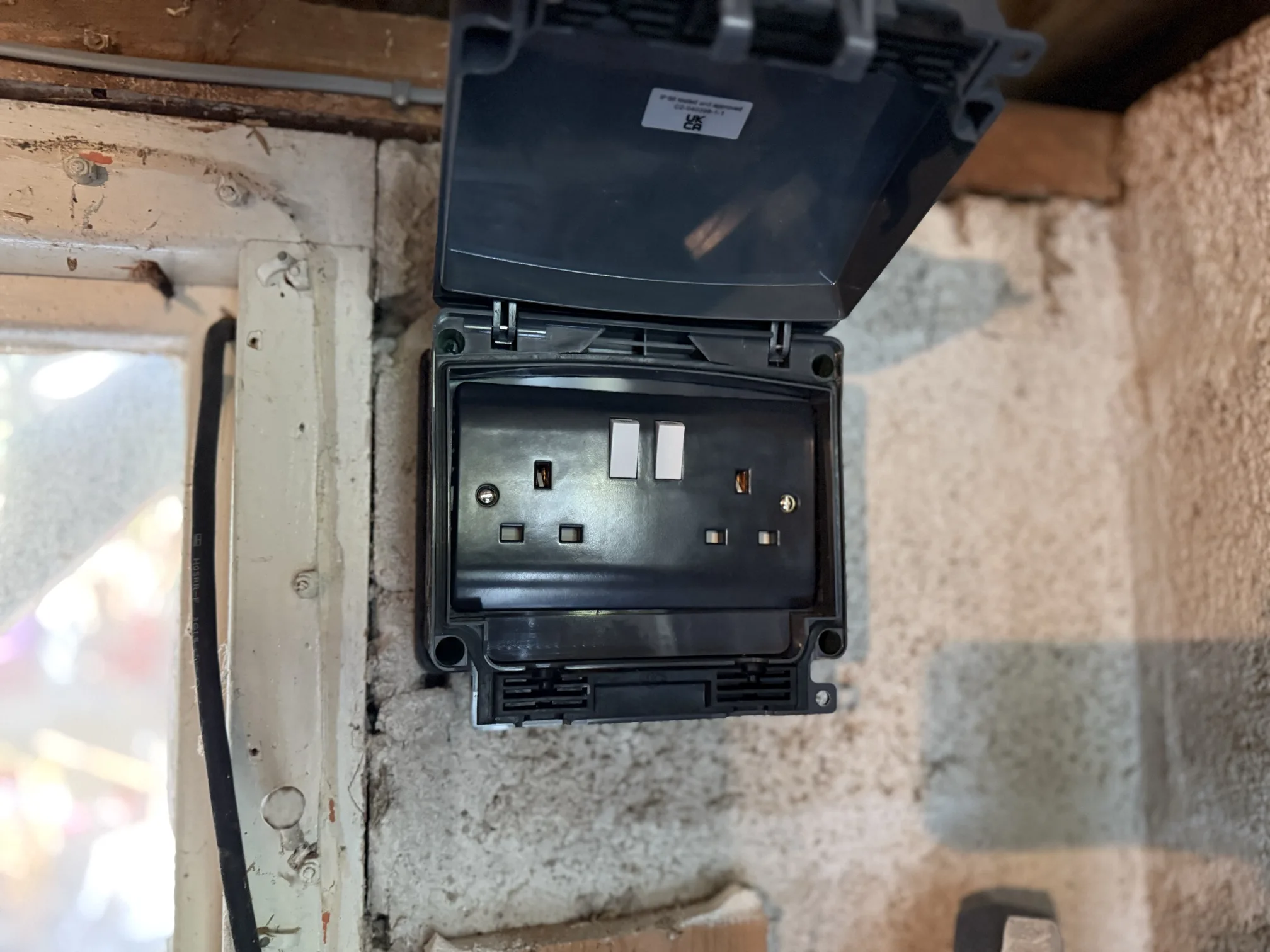

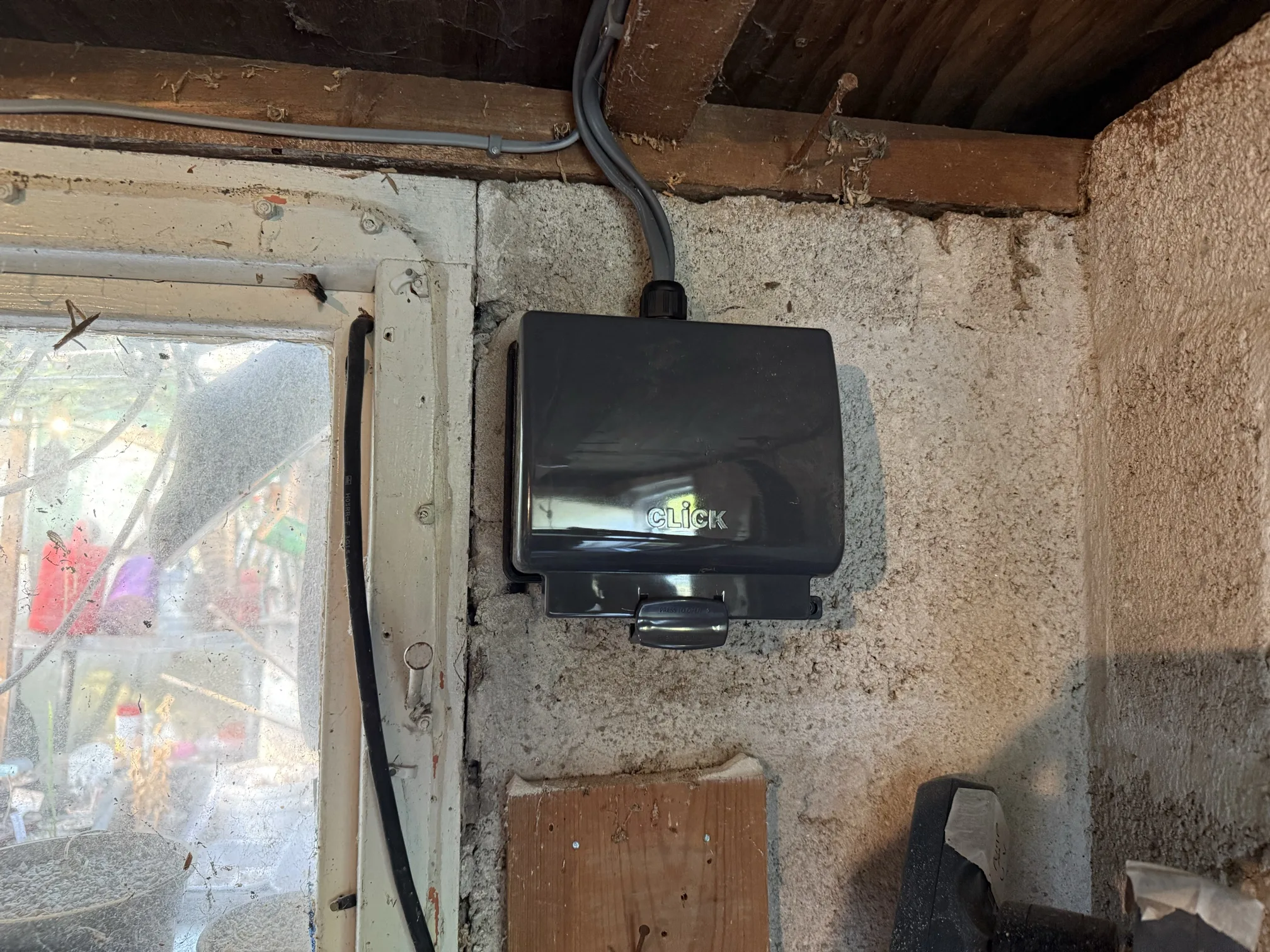

Weather-resistant electrical provision received particular attention through the installation of IP-rated double socket outlets in both outbuildings. These heavy-duty sockets withstand moisture, dust, and temperature variations whilst providing reliable power access for garden equipment, workshop tools, and seasonal lighting installations. The IP rating system specifically addresses outdoor electrical challenges, with these sockets designed to maintain safe operation in demanding environmental conditions.
The RCBO protection system extends throughout the new installation, providing comprehensive safety coverage for all circuits supplying the outbuildings. These devices combine overcurrent protection with residual current detection, automatically disconnecting power supplies when earth faults occur. This dual protection approach significantly reduces electrical shock risks whilst preventing equipment damage from electrical faults.
Cable routing considerations played a crucial role in this installation’s success. The 35-metre steel wire armoured cable run required precise planning to avoid underground utilities, maintain appropriate burial depths, and provide adequate mechanical protection at entry and exit points. The armoured construction offers excellent resistance to accidental damage from gardening activities whilst maintaining electrical integrity across varying ground conditions.
System consolidation formed another key project element, bringing multiple circuits under unified control within the upgraded main consumer unit. This consolidation simplifies maintenance requirements, improves fault isolation capabilities, and creates a more logical electrical distribution arrangement. The fire-rated enclosure provides additional safety assurance, particularly important in domestic installations where consumer units often locate near escape routes.
The electrical inspection and testing process validated all circuit modifications and confirmed compliance with current electrical standards. This comprehensive testing regime covers insulation resistance, earth fault loop impedance, and RCD operation, providing documented evidence of installation safety and performance. The resulting Electrical Installation Certificate provides formal confirmation of regulatory compliance and installation quality.
Modern surge protection technology deserves particular mention given increasing reliance on sensitive electronic equipment throughout residential properties. The integrated SPD automatically diverts harmful voltage spikes away from connected circuits, protecting computers, entertainment systems, and household appliances from grid-related electrical disturbances. This protection becomes increasingly valuable as utility infrastructure ages and extreme weather events create more frequent power quality issues.
This Goonhavern electrical project’s completion delivers enhanced electrical safety, improved power distribution flexibility, and reliable outdoor electrical access. The upgraded fuseboard provides modern circuit protection standards whilst the outbuilding installation creates dedicated workshop and garden power supplies. These improvements support both current electrical requirements and future expansion possibilities, reflecting thoughtful electrical system planning and professional installation standards.
