Complete consumer unit replacement and relocation project in St Newlyn East, featuring a modern 14-way RCBO consumer unit with integrated surge protection device, upgraded meter tails, and professional installation to current 18th Edition wiring regulations.
https://www.wave-electricalsolutions.co.uk/area/electrician-in-newquay/This consumer unit replacement project in St Newlyn East involved both upgrading the electrical protection system and relocating the unit to a more practical position. The existing consumer unit required replacement with a modern fire-rated 14-way RCBO consumer unit, which would provide individual circuit protection and significantly improve electrical safety for the property.
The relocation aspect of this project presented interesting technical challenges. The new consumer unit needed to be positioned on the opposite side of the wall within the property’s porch area. This relocation required careful planning to utilise existing cable lengths whilst maintaining compliance with current electrical regulations. The decision to install a recessed consumer unit proved particularly beneficial, as this approach maximised the usable length of existing cables and created a neater installation.
The upgrade included replacing the incoming meter tails with 25mm double insulated cabling, providing improved capacity and safety margins for the electrical supply. This upgrade addresses modern electrical demands and provides headroom for future electrical additions to the property. The enhanced cabling specification means the installation can handle higher electrical loads safely and efficiently.
One of the standout features of this replacement consumer unit is the integrated Surge Protection Device (SPD). This technology protects connected electronics throughout the property from voltage fluctuations and power surges originating from the electrical grid. With today’s homes containing numerous sensitive electronic devices, from smart TVs and computers to heating controls and security systems, surge protection has become increasingly important. The SPD automatically responds to power surges, diverting excess voltage away from the property’s circuits and connected equipment.

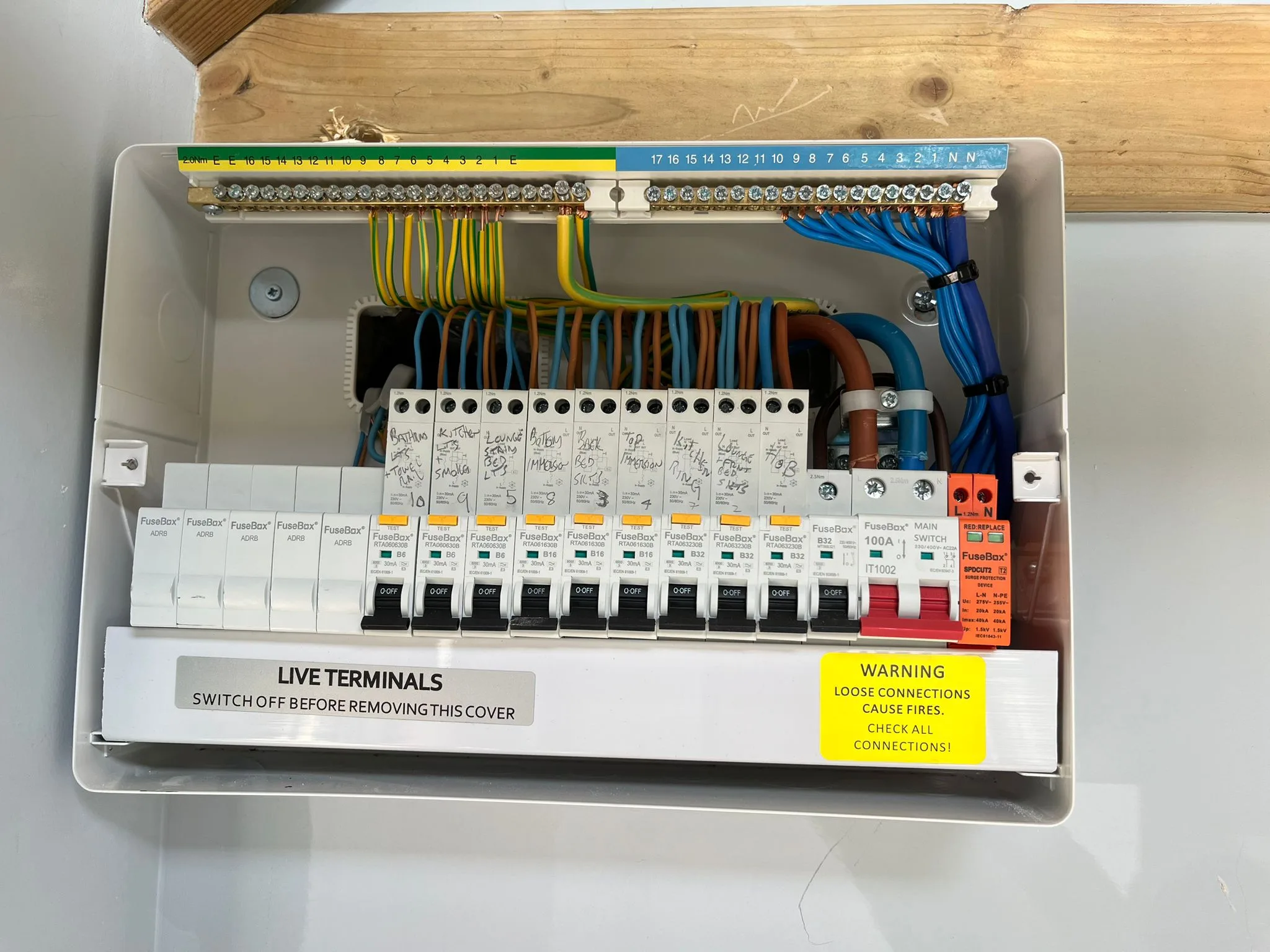

The RCBO (Residual Current Breaker with Overcurrent protection) configuration provides dual protection for each circuit. Unlike traditional consumer units that might use a combination of MCBs and RCDs, each RCBO combines both overcurrent protection and earth leakage protection in a single device. This arrangement means that if a fault occurs on one circuit, only that specific circuit trips, leaving all other circuits operational. This selective protection reduces inconvenience and makes fault-finding much more straightforward.
The physical installation required core drilling approximately 100mm holes through the former exterior wall to accommodate the cable routing to the new consumer unit location. This work needed to be executed precisely to maintain the building’s weather protection whilst creating clean cable routes. The drilling work was positioned carefully to avoid any structural elements and maintain the integrity of the building fabric.
The fire-rated specification of the new consumer unit provides additional safety benefits. Fire-rated consumer units are designed to contain any potential fire within the unit itself, preventing spread to surrounding areas. This specification has become increasingly important in modern electrical installations, particularly in domestic properties where the consumer unit might be located near escape routes or in areas where fire spread could pose particular risks.
Throughout this replacement consumer unit project, compliance with the 18th Edition of the wiring regulations remained paramount. The 18th Edition introduced several important safety improvements, including enhanced requirements for surge protection, improved specifications for cables and connections, and updated guidance on consumer unit locations. This installation incorporated all relevant requirements, providing a future-proof electrical installation that meets current standards.

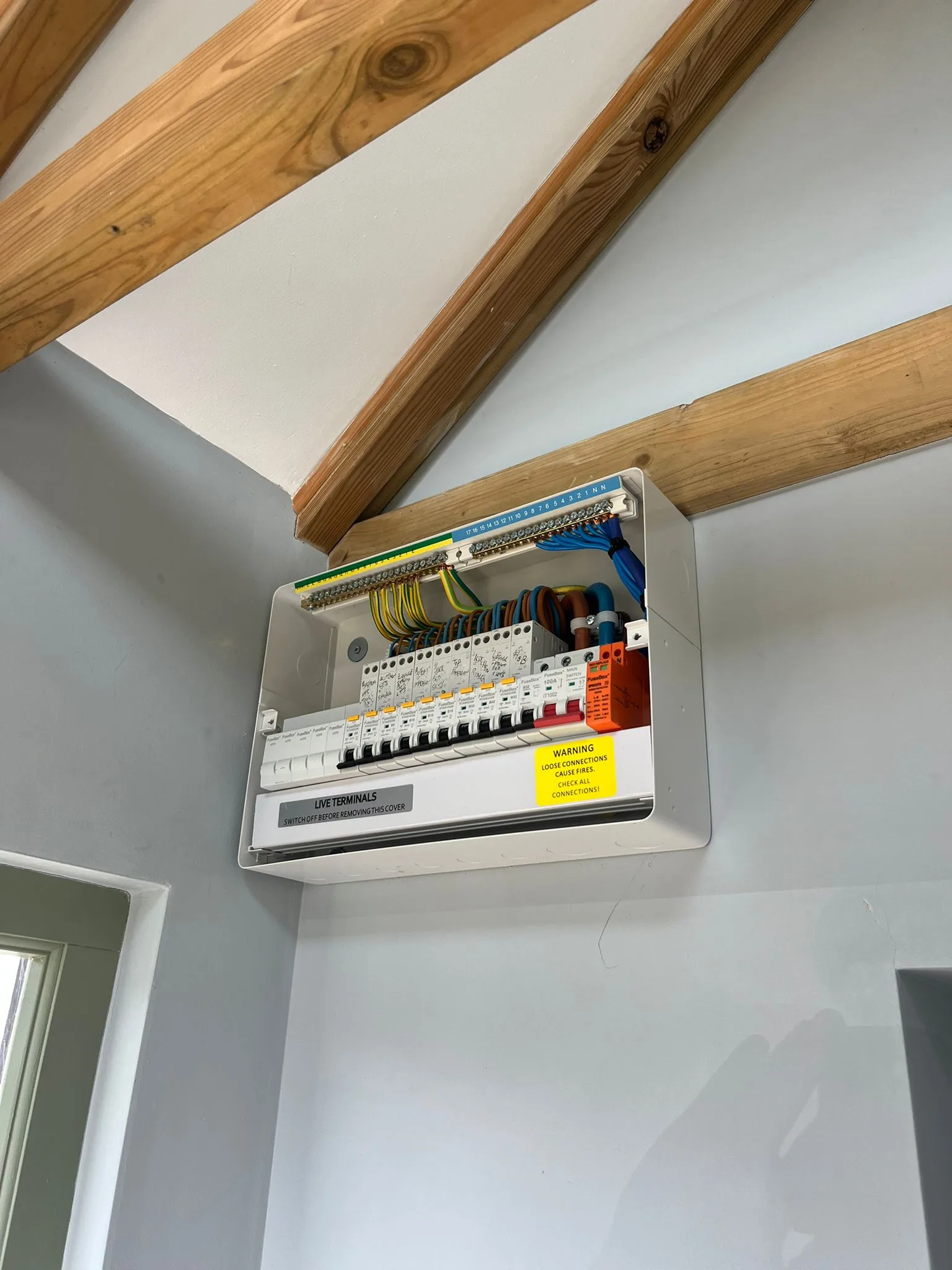

The relocation to the porch area offers practical benefits for the property occupants. Consumer units positioned in porches are typically more accessible for maintenance and inspection whilst remaining protected from weather exposure. The recessed installation creates a tidy appearance that doesn’t intrude into the usable space of the porch area.
Where existing cables couldn’t reach the new consumer unit location, provision was made for a Consumer Unit Relocation Unit. This device would be positioned at high level in the area of the original consumer unit, providing a safe and compliant method of extending circuits to reach the new location. This approach maintains electrical integrity whilst avoiding the expense and disruption of rewiring entire circuits.
The combination of modern RCBO protection, integrated surge protection, upgraded meter tails, and compliant installation to current regulations provides this St Newlyn East property with a comprehensive electrical safety upgrade. The installation addresses both current needs and future requirements, providing reliable electrical protection for years to come.
