Bathroom and Kitchen Lighting Upgrade with Essential Safety Bonding in Flushing

A recent Electrical Installation Condition Report (EICR) for a property in Flushing revealed several areas requiring attention to meet current electrical safety standards. These findings prompted our client to contact us for a complete assessment and resolution of the issues identified.

Upon arriving at the property, we carried out a thorough inspection to fully understand the scope of work needed. The EICR had highlighted two main concerns: outdated lighting fixtures that no longer met current regulations and inadequate earthing provision for the oil tank.

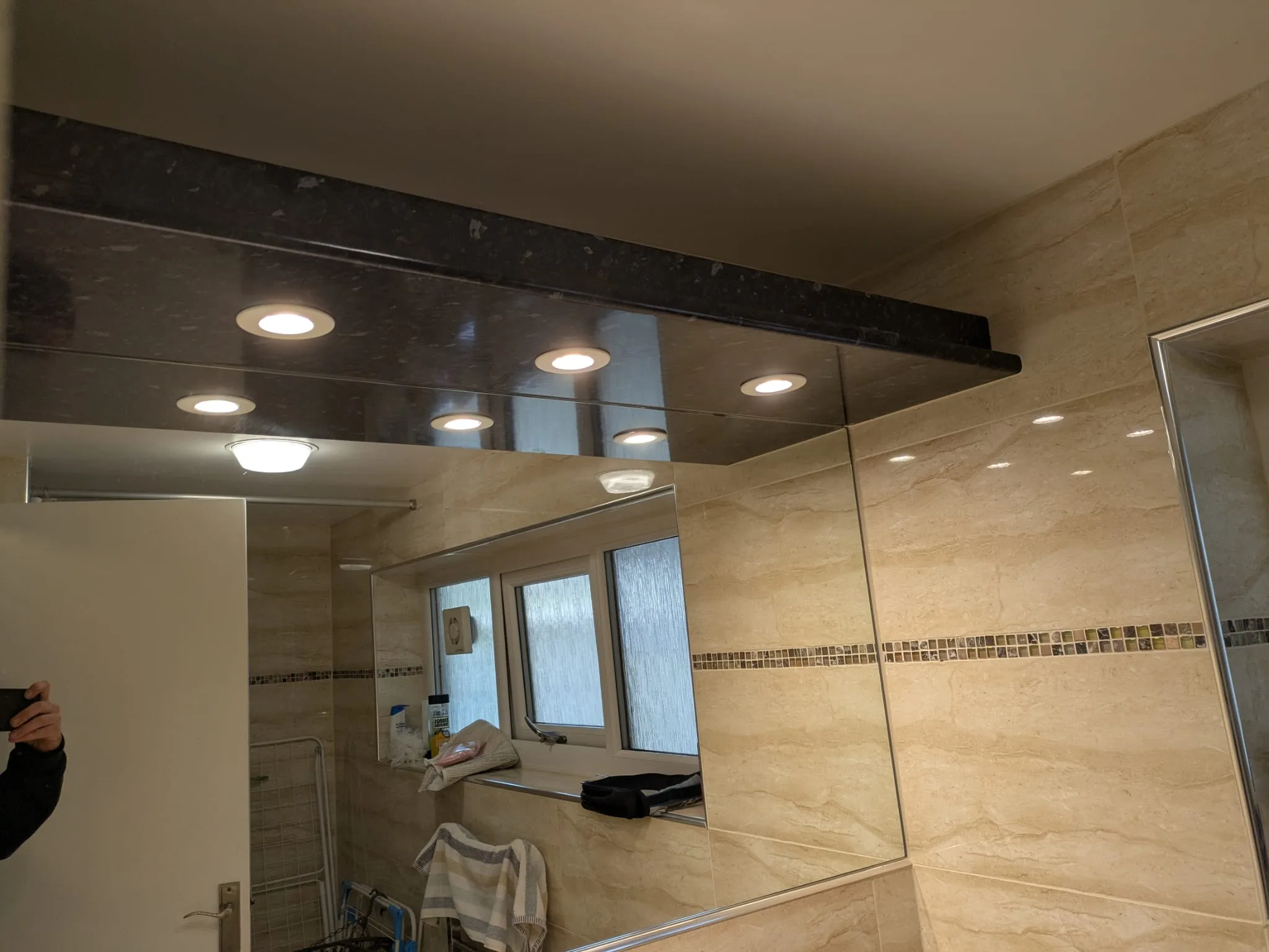

The bathroom presented particular safety challenges. In wet environments like bathrooms, electrical installations must adhere to stricter safety requirements due to the increased risk of electric shock. The existing light fittings were older models that didn’t provide the necessary protection levels for bathroom use. We recommended replacing these with modern Class 2 insulated units, which offer double insulation against electric shock – a critical safety feature for bathroom installations.

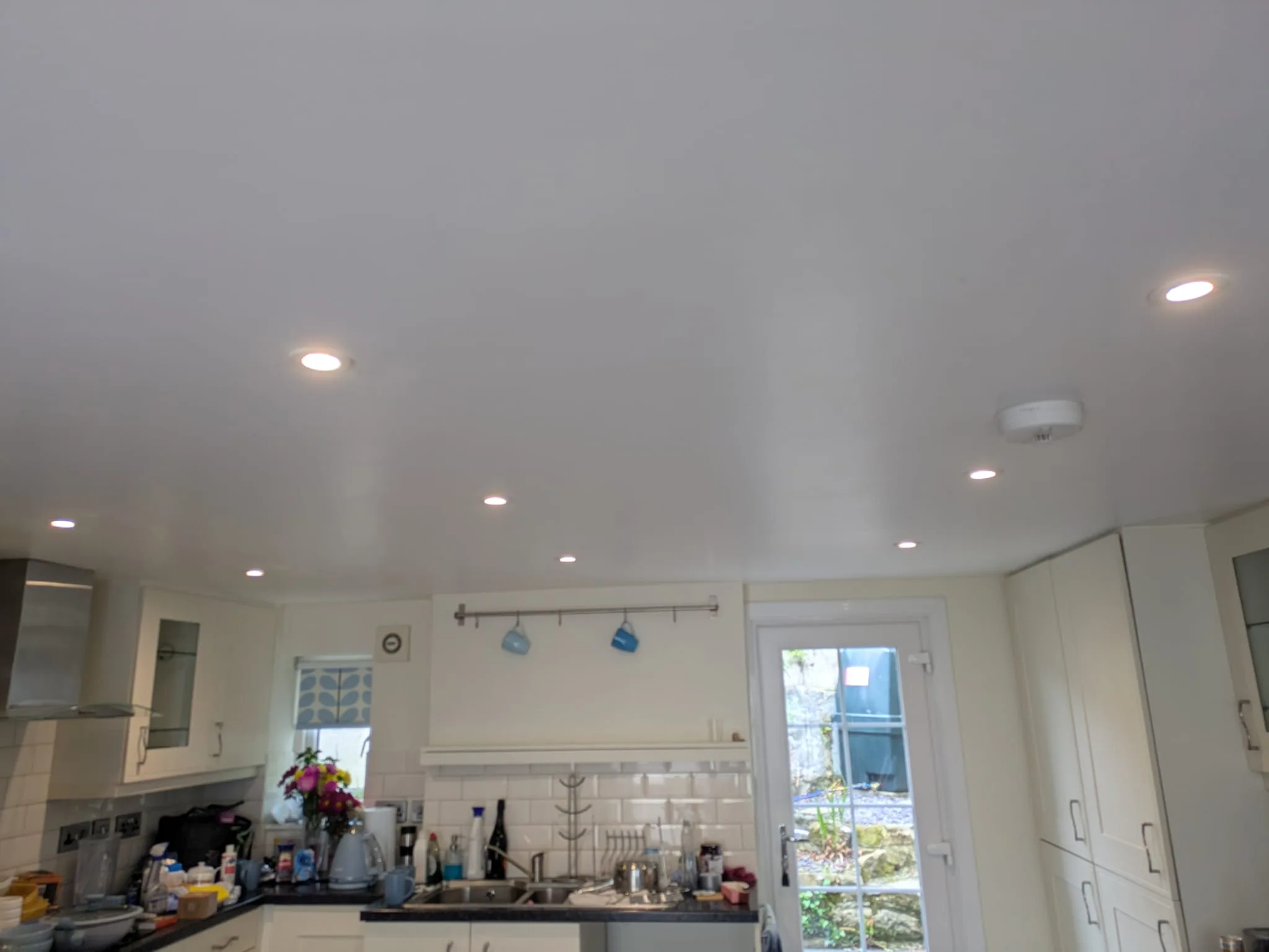

Moving to the kitchen area, we found nine existing light fittings that similarly needed upgrading. Kitchen environments, while not as moisture-prone as bathrooms, still require appropriate lighting fixtures that can withstand the specific conditions found in cooking areas, including steam, heat and grease exposure. The previous fittings had deteriorated over time and no longer provided reliable, safe operation.

For both the bathroom and kitchen installations, we selected high-quality Class 2 insulated lighting units. These fixtures are specifically designed with two layers of insulation, meaning they don’t require a separate earth connection. This design significantly reduces the risk of electrical faults and enhances overall safety. The new lighting also provided improved illumination quality, creating a brighter, more welcoming atmosphere in these frequently used spaces.

The second major component of our work involved addressing the oil tank earthing requirements. Oil tanks present specific electrical safety considerations, particularly regarding the prevention of static build-up and ensuring proper earthing connections. The EICR had identified that the existing earthing arrangement was insufficient according to current regulations.

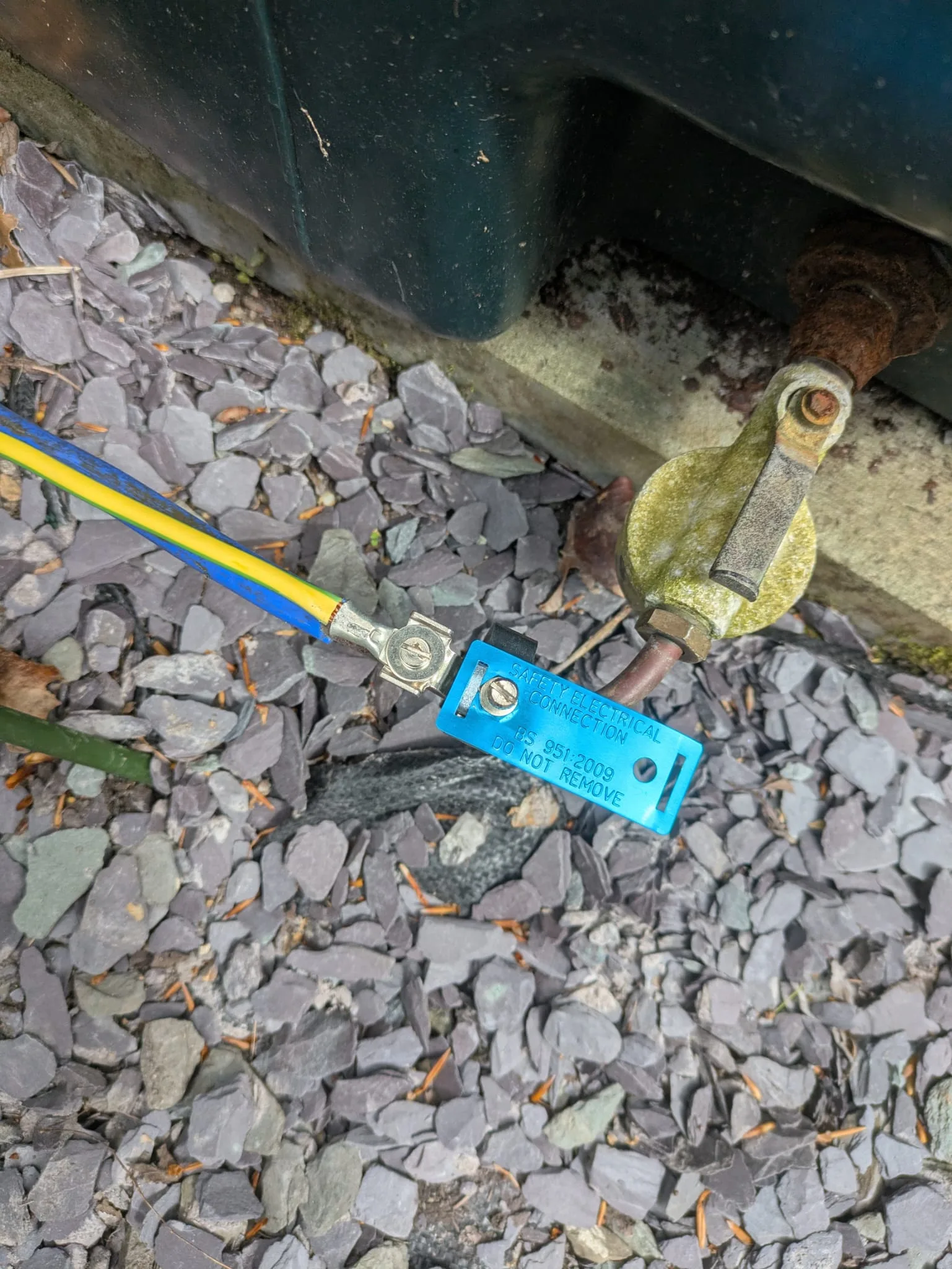

To resolve this issue, we installed a new 10mm earth bonding cable to the oil tank. This substantial cable provides a proper path for any electrical current to safely disperse into the ground, preventing potential hazards. The bonding connection ensures that in the event of a fault, electricity will follow the path of least resistance through the earth cable rather than through a person who might touch the tank.

Throughout the installation process, we took care to minimise disruption to the household. The work was completed efficiently, with all new fittings securely mounted and all connections thoroughly tested before commissioning.

After completing the installation, we conducted comprehensive testing of all new circuits and connections to verify that everything functioned correctly and safely. This included insulation resistance tests, earth continuity checks, and polarity verification – all essential steps in confirming that an electrical installation meets the required standards.

The final step involved providing the client with documentation confirming that the issues identified in the original EICR had been addressed. This documentation is crucial for homeowners as it provides evidence that their electrical installation now complies with current regulations and safety standards.
