Modern LED PIR Security Lighting Installation in Redruth

Among the various electrical works needed at this Redruth property, the replacement of an older PIR floodlight system was particularly notable. The existing unit had deteriorated over time, becoming unreliable with inconsistent triggering and dimming light output that failed to provide adequate security coverage.

Upon arriving at the property, we first assessed the condition of the current installation. The original floodlight had been mounted on the stone exterior wall of the home, positioned to cover the approach area. Years of exposure to Cornwall’s coastal weather had taken their toll on the unit, with visible corrosion on the housing and moisture ingress affecting the internal components.

After isolating the circuit at the consumer unit, we carefully removed the damaged floodlight, preserving the existing cabling where possible. The wiring was inspected to verify it remained in good condition and appropriate for the new installation. The mounting location on the stone wall presented some challenges due to the irregular surface, but the existing mounting points provided a stable foundation.

The replacement chosen was a contemporary 10W LED PIR floodlight, offering several advantages over the previous system. LED technology provides significant energy savings compared to traditional halogen floodlights, with similar brightness achieved while consuming just a fraction of the electricity. The newer PIR sensor features increased sensitivity and a wider detection range, improving the security functionality.

Installation required careful positioning to maximise coverage while avoiding false triggers from passing traffic or swaying vegetation. The unit was mounted securely to the wall, with appropriate weatherproofing applied around the cable entry points to prevent future moisture problems. All connections were made to industry standards, ensuring a safe and reliable installation.

The LED floodlight’s adjustable settings allowed us to configure the sensitivity and illumination duration to suit the client’s specific requirements. We demonstrated these features to the homeowner, showing how to adjust settings if their needs change in future.

As part of the complete electrical service, we also addressed several indoor power needs throughout the property. This included converting various single gang sockets to double gang configurations in multiple rooms, adding new socket outlets in strategic locations, and installing additional power points in the study and living areas. Of particular note was the installation of twin socket outlets on a redundant fireplace to better accommodate modern entertainment systems.

For the sockets requiring extension of existing circuits, we used 25mm trunking installed at low level to minimise visual impact while maintaining proper cable protection. All socket installations were completed with minimal disruption to the home’s décor, using appropriate dry lining or metal back boxes depending on the wall construction.

Following completion, we thoroughly tested all new installations to verify proper operation, including checking earth continuity, insulation resistance, and polarity. The PIR floodlight was tested in various lighting conditions to confirm proper triggering and coverage.

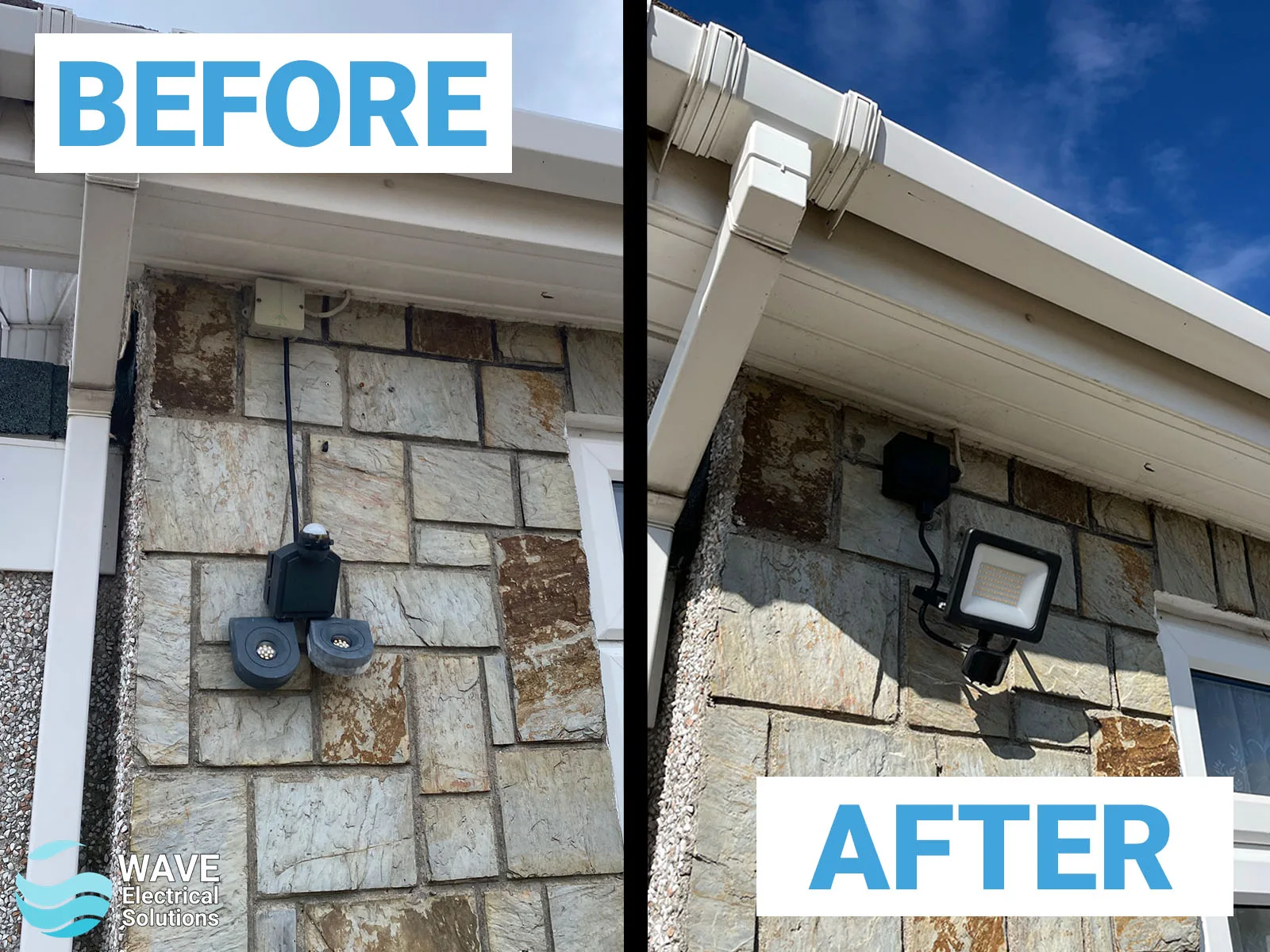

The transformation from the old, deteriorated floodlight to the sleek new LED unit dramatically improved both the aesthetic appearance and security function. The clean installation on the stone wall complemented the property’s exterior while providing reliable motion detection and bright, energy-efficient illumination for the approach area.

The combined improvements deliver substantial benefits for the homeowners: enhanced security through reliable motion detection lighting, reduced energy consumption from efficient LED technology, and increased convenience with additional power points positioned where modern lifestyles demand them.

This Redruth project demonstrates how even relatively straightforward electrical upgrades can significantly improve both the functionality and security of a property. The investment in quality components and professional installation ensures these benefits will continue reliably for many years to come.
